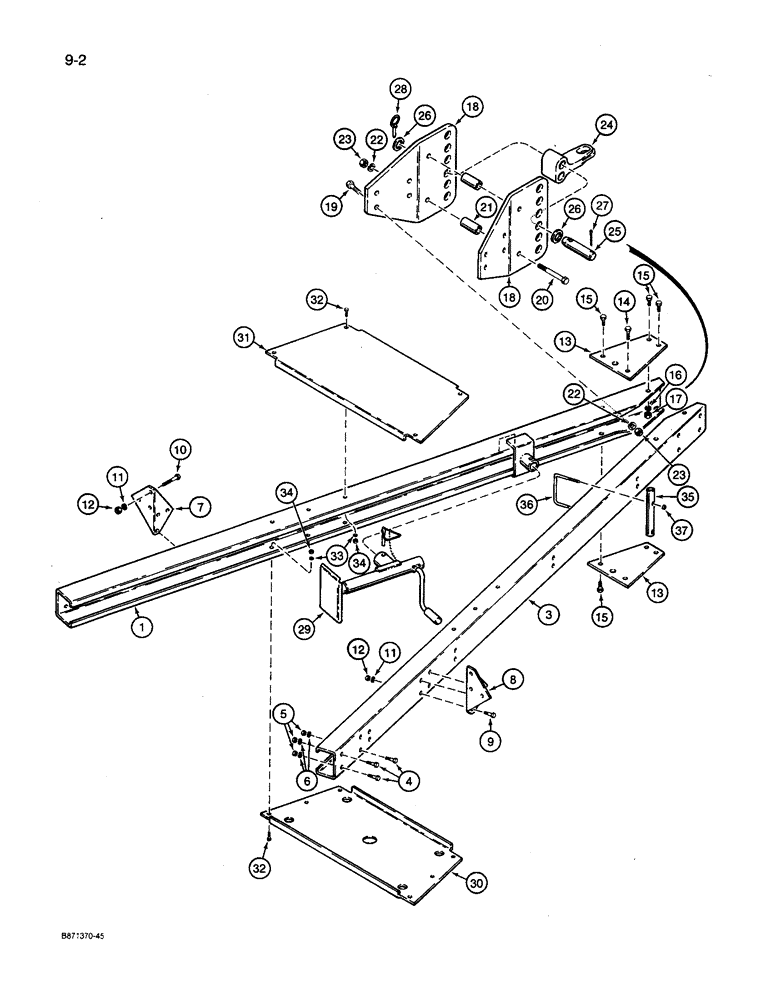

Запчасти Case IH 8600 (9-002) - HITCH AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

841761C1

CHANNEL

- hitch, left-hand side

1шт.

3

841421C1

TRAILER HITCH

CHANNEL - hitch, right-hand side

1шт.

4

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

6шт.

5

129-107

NUT,5/8"-11, G5

6шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

88956C1

PLATE

- hitch tie, left-hand side, channel to hopper frame

1шт.

8

88957C1

PLATE

- hitch tie, right-hand side, channel to hopper frame

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

10

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT - hex head, 1/2 inch - 13 NC x 3 inch

6шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

13

841423C1

PLATE

- hitch tie channel, upper and lower

2шт.

14

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex head, 1/2 inch - 13 NC x 1-3/4 inch

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

18

842468C1

SUPPORT

- hitch tongue, side

2шт.

19

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex head, 3/4 inch - 10 NC x 2 inch

8шт.

20

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex head, 3/4 inch - 10 NC x 5-1/2 inch

2шт.

21

597326R1

SPACER

- hitch tongue support

2шт.

22

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

23

280954

NUT,3/4"-10, G5

10шт.

24

842469C2

TOW BAR

TONGUE - hitch, used with 1-1/2 inch OD pin

1шт.

24

810442C2

TOW BAR

TONGUE - hitch, used with 2 inch OD pin

1шт.

25

810462C1

PIN

- mounting, hitch tongue

2шт.

26

22051R1

WASHER

- special, tongue mounting pin

4шт.

27

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

28

D33805

PIN

- klik, mounting pin

2шт.

29

127070C1

JACK

- hitch channel

1шт.

30

842642C1

CHANNEL

PLATE - channel, hitch tie, lower

1шт.

31

842641C1

ASSEMBLY

STEP - access, at hitch

1шт.

32

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - hex head, 5/16 inch - 18 NC x 3/4 inch

10шт.

33

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

34

120376

NUT,5/16"-18, G5

10шт.

35

1958310C1

TUBE

- pump support

1шт.

36

1958311C1

U-BOLT,5/16" - 18 x 4 3/4", Grade 5

- tube mounting

1шт.

37

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.
