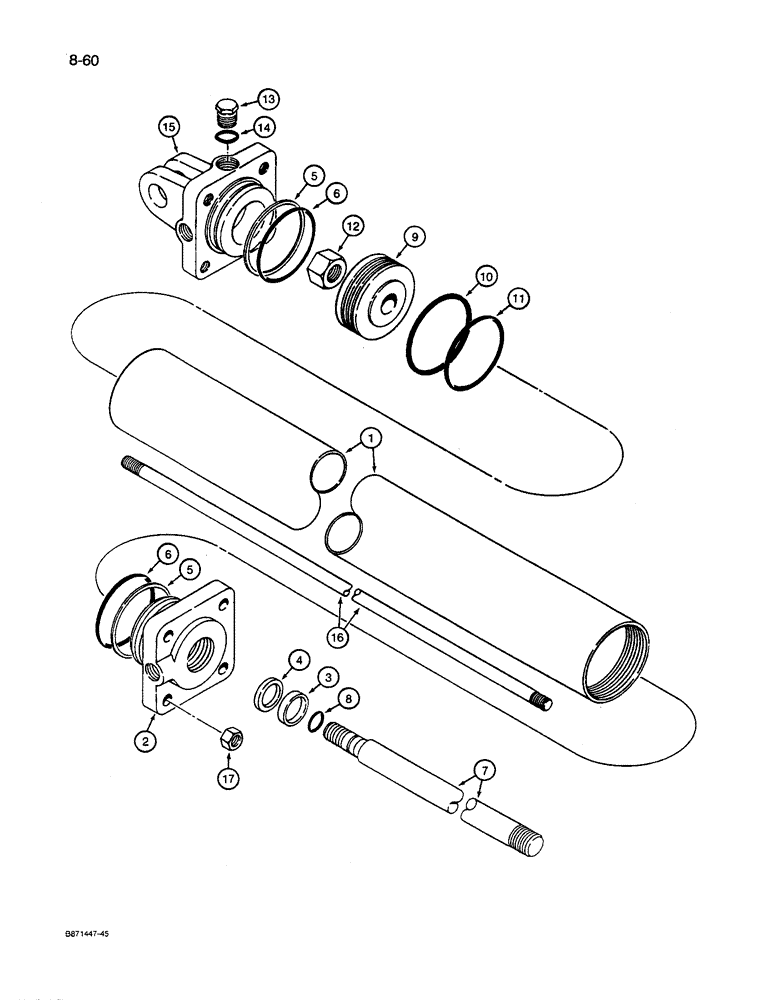

Запчасти Case IH 8600 (8-60) - HITCH STABILIZER CYLINDER, 92958C1, 3-1/2 INCH (89 MM) ID (08) - HYDRAULICS

92958C1

CYLINDER ASSY.

CYLINDER - 3-1/2 inch (89 mm) ID x 24 inch (610 mm) stroke, hitch stabilizer

1шт.

The cylinder assembly part number is stamped on the cylinder tube

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

93348C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 93349C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal repair kit P/N 93349C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring and end cap

2шт.

Part of seal repair kit P/N 93349C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

Part of seal repair kit P/N 93349C1

1шт.

7

93346C1

ROD

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod, small

1шт.

Part of seal repair kit P/N 93349C1

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston, O-ring

1шт.

Part of seal repair kit P/N 93349C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

Part of seal repair kit P/N 93349C1

1шт.

12

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch - 14 NF

1шт.

13

9410359

PLUG

- hex head

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

Part of seal repair kit P/N 93349C1

1шт.

15

1282334C1

HEAD

CAP - end, cylinder

1шт.

16

1286286C1

BOLT

- cylinder tie

4шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

93349C1

SEAL KIT

- seal repair, Includes: Ref. 3 thru 6, 8, 10, 11 and 14

1шт.
