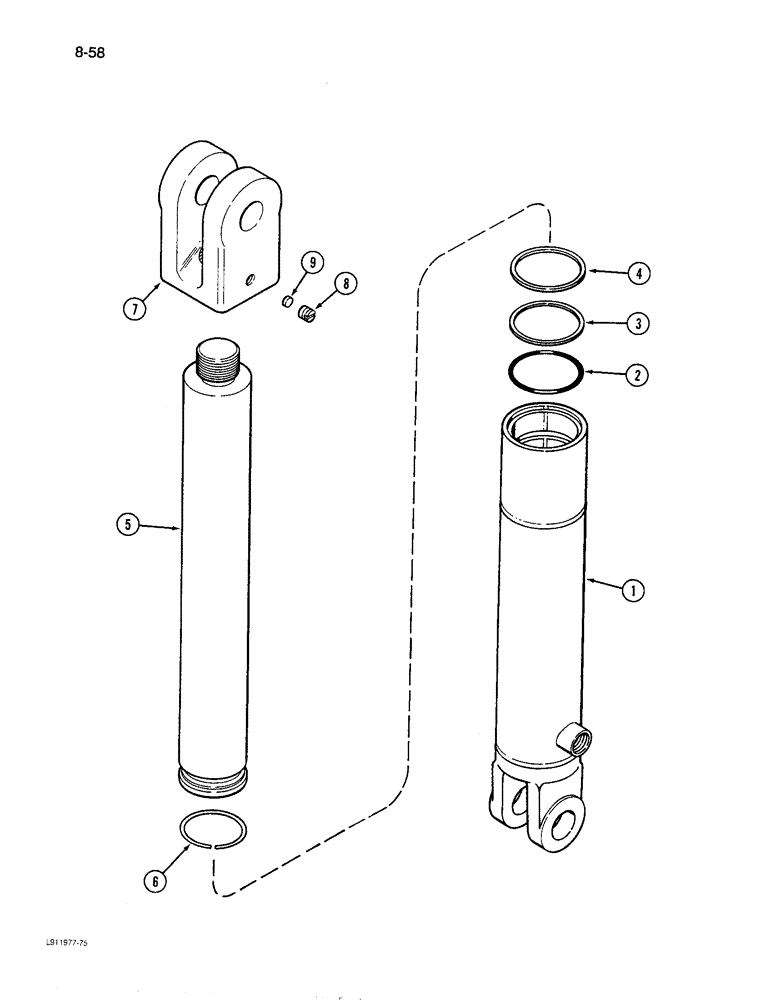

Запчасти Case IH 8600 (8-58) - ROW MARKER CYLINDER (08) - HYDRAULICS

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - marker lift (See note below)

1шт.

Part number is stamped on the cylinder tube.

1шт.

1

145621C1

HYD TUBE

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 2 x 2-3/8 inch

1шт.

Part of O-ring and seal service kit P/N 145682C1

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of O-ring and seal service kit P/N 145682C1

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - back up

1шт.

Part of O-ring and seal service kit P/N 145682C1

1шт.

5

1343689C1

PISTON ROD

ROD - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - rod retaining

1шт.

Part of O-ring and seal service kit P/N 145682C1

1шт.

7

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

8

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, headless slotted, 3/8 x 3/8 inch

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - rod clevis

1шт.

145682C1

SEALING RING

KIT - servie, O-ring and seal, Includes: Ref. 2, 3, 4 and 6

1шт.
