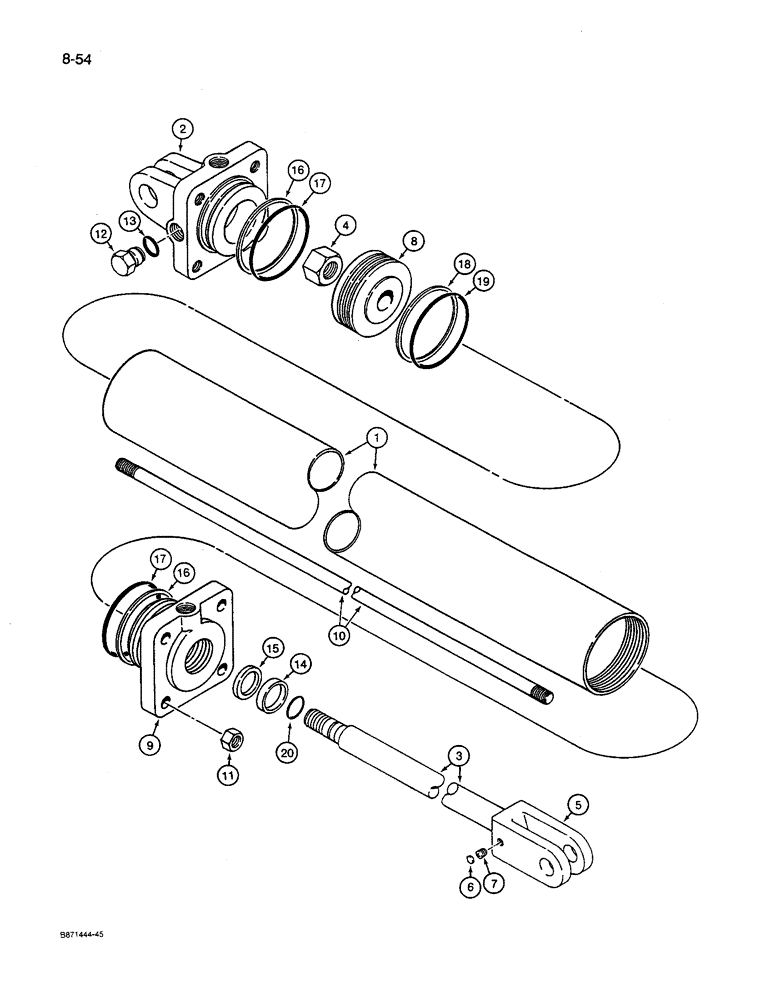

Запчасти Case IH 8600 (8-54) - TRACK ERASER CYLINDER, 1272145C91, 2-1/2 INCH (64 MM) ID (08) - HYDRAULICS

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 inch (64 mm) ID x 8 inch (203 mm) stroke, track eraser

2шт.

The cylinder assembly part number is stamped on the cylinder tube

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272766C1

HEAD

CAP - end, cylinder

1шт.

3

145231C1

PISTON ROD

ROD - piston

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch - 14 NF

1шт.

5

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - clevis, nylon

1шт.

7

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 inch - 16 NC x 3/8 inch

1шт.

8

145221C3

PISTON

- cylinder

1шт.

9

1272767C1

CYLINDER END CAP

GLAND - cylinder

1шт.

10

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

BOLT - cylinder tie

4шт.

11

129-104

NUT,7/16"-14, G5

4шт.

12

9410359

PLUG

- hex head

1шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

Part of seal repair kit P/N 79975C2

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 79975C2

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal repair kit P/N 79975C2

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland o-ring

2шт.

Part of seal repair kit P/N 79975C2

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal repair kit P/N 79975C2

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 79975C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston, large

1шт.

Part of seal repair kit P/N 79975C2

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

Part of seal repair kit P/N 79975C2

1шт.

79975C2

SEAL KIT

KIT - seal repair, Includes: Ref. 79975C2

1шт.
