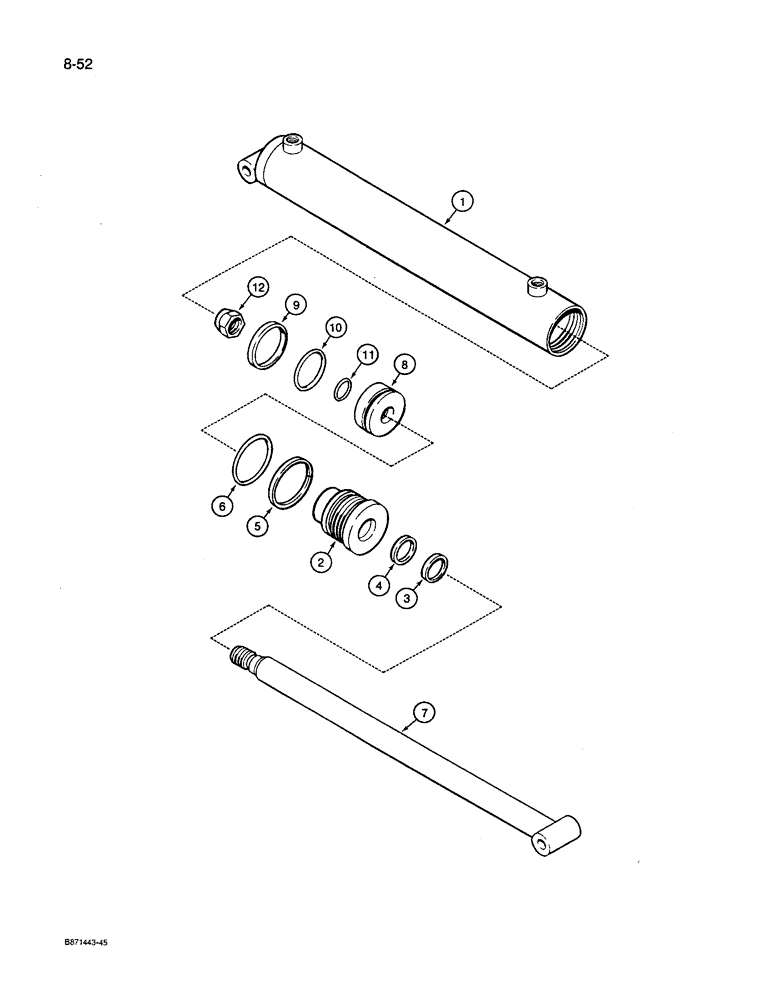

Запчасти Case IH 8600 (8-52) - WING FOLD CYLINDER, 84941C91, 4 INCH (102 MM) ID (08) - HYDRAULICS

84941C91

CYLINDER ASSY.

CYLINDER - 4 inch (102 mm) ID x 24 inch (610 mm) stroke, wing fold

2шт.

The cylinder assembly part number is stamped on the cylinder head.

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

85269C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 85024C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal repair kit P/N 85024C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

Part of seal repair kit P/N 85024C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal repair kit P/N 85024C1

1шт.

7

85267C1

ROD ASSY.

ROD - piston

1шт.

8

85268C1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 85024C1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston, large

1шт.

Part of seal repair kit P/N 85024C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

Part of seal repair kit P/N 85024C1

1шт.

12

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex, 1-1/8 inch - 12 NF

1шт.

85024C1

SEAL KIT

- seal repair, Includes: Ref. 3 thru 6 and 9 thru 11

1шт.
