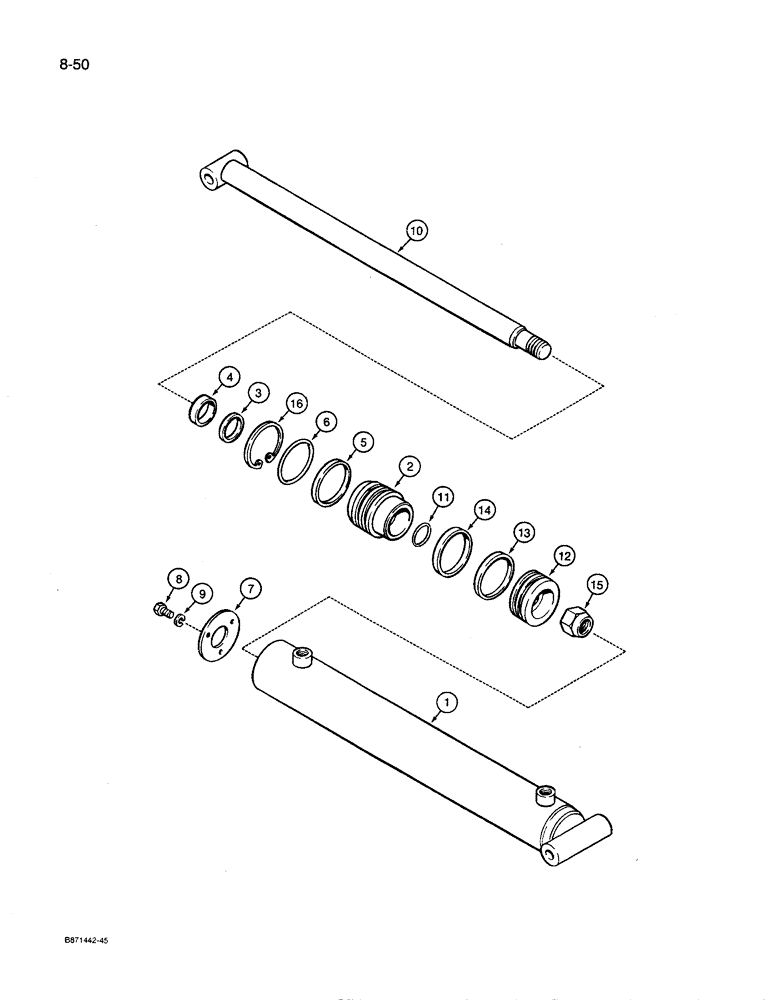

Запчасти Case IH 8600 (8-50) - WING FOLD CYLINDER, 817675C91, 4 INCH (102 MM) ID (08) - HYDRAULICS

817675C91

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 615.95mm Stroke

CYLINDER - 4 inch (102 mm) ID x 24 inch (610 mm) stroke, wing fold

2шт.

The cylinder assembly part number is stamped on the cylinder tube

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

843414C1

GLAND

- cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 843397C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal repair kit P/N 843397C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

Part of seal repair kit P/N 843397C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal repair kit P/N 843397C1

1шт.

7

843391C1

RETAINER

- cylinder, gland end

1шт.

8

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

10

843392C1

PISTON ROD

ROD - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal repair kit P/N 843397C1

1шт.

12

843393C1

PISTON

- cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 843397C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of seal repair kit P/N 843397C1

1шт.

15

18489R1

LOCK NUT,1 1/4"-12, GB

NUT - hex, self-locking, 1-1/4 inch - 12 NF

1шт.

16

843396C1

CIRCLIP

RING - retaining

1шт.

843397C1

SEAL KIT

KIT - seal repair, Includes: Ref. 3, 4, 5, 6, 11, 13 and 14

1шт.
