Запчасти Case IH 8600 (8-46) - WING FRAME DEPTH CONTROL CYLINDER, 1267178C1, 3 INCH (76 MM) ID (08) - HYDRAULICS

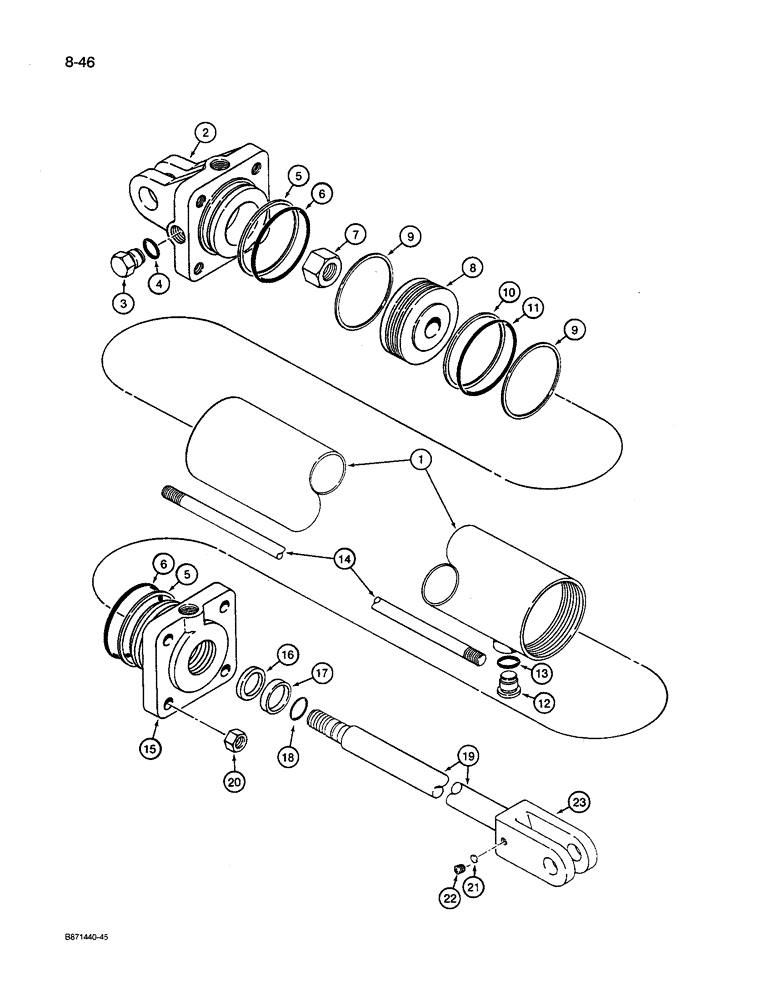

Схема запчастей Case IH 8600 - (8-46) - WING FRAME DEPTH CONTROL CYLINDER, 1267178C1, 3 INCH (76 MM) ID (08) - HYDRAULICS
9
17
11
16
15
18
14
19
9
6
4
8
23
6
1
20
21
13
2
3
5
10
22
7
12
5

Артикул

Название

Примечание

Количество

1267178C2

CYLINDER

ASSEMBLY - 3 inch (76 mm) ID x 12 inch (305 mm) stroke, wing frame depth control

2шт.

The cylinder assembly part number is stamped on the cylinder tube

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272761C1

HEAD

CAP - end, cylinder

1шт.

3

9410359

PLUG

- hex head, end cap

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of seal repair kit P/N 93321C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal repair kit P/N 93321C1

1шт.

7

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch - 14 NF, plated

1шт.

8

93320C1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of seal repair kit P/N 93321C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 93321C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston, large

1шт.

Part of seal repair kit P/N 93321C1

1шт.

12

224582C1

PLUG

- phasing

1шт.

14

93313C1

BOLT

- cylinder tie

4шт.

15

ZA502918

HEAD

GLAND - cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal repair kit P/N 93321C1

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 93321C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

Part of seal repair kit P/N 93321C1

1шт.

19

93314C1

ROD

- piston

1шт.

20

129-104

NUT,7/16"-14, G5

4шт.

21

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - clevis, nylon

1шт.

22

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 inch - 16 NC x 3/8 inch

1шт.

23

1923664C1

CLEVIS

- rod end

1шт.

93321C1

SEAL KIT

- seal repair, Includes: Ref. 5, 6, 9, 10, 11, 13, 16, 17 and 18

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug, end cap

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

Part of seal repair kit P/N 93321C1

1шт.
