Запчасти Case IH 8600 (8-44) - HITCH STABILIZER VALVE, 93134C1 (08) - HYDRAULICS

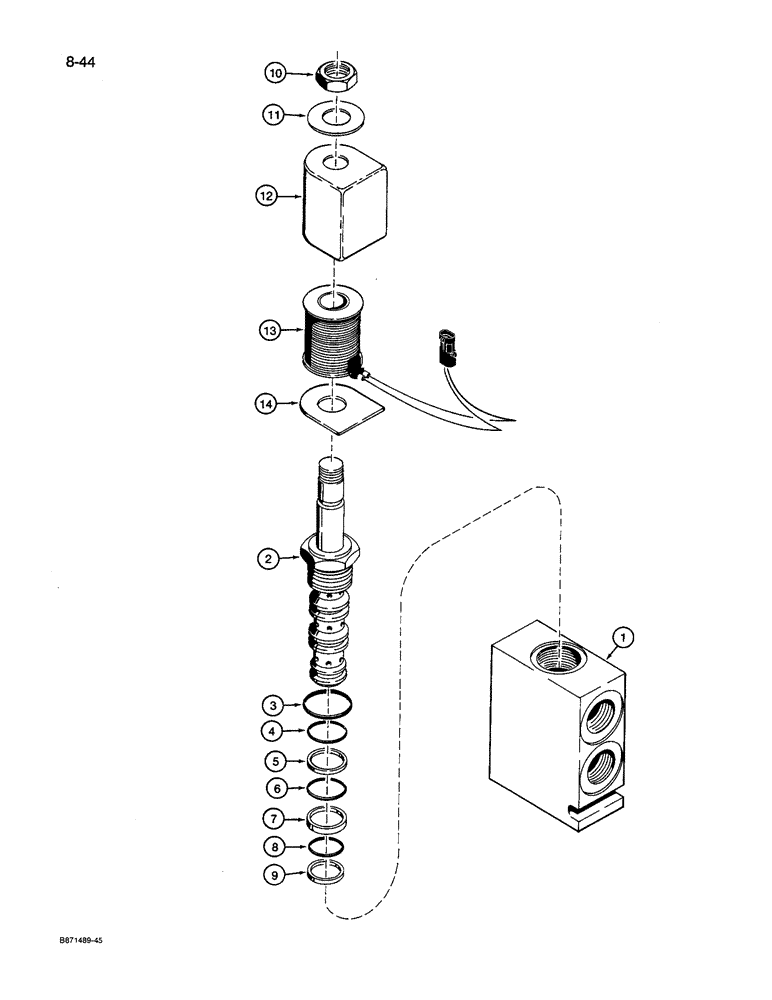

Схема запчастей Case IH 8600 - (8-44) - HITCH STABILIZER VALVE, 93134C1 (08) - HYDRAULICS
12
5
9
6
3
8
1
14
10
7
4
11
13
2

Артикул

Название

Примечание

Количество

93134C1

VALVE

ASSEMBLY - hitch stabilizer

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

93211C1

VALVE

SPOOL ASSEMBLY - hitch stabilizer valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - hitch stabilizer valve

1шт.

187850C1

SEAL KIT

KIT - seal, solenoid coil

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - large, spool to valve body

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - spool, inner

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, inner O-ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - spool, center

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, center O-ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - spool, outer

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, outer O-ring

1шт.

93209C1

KIT

- solenoid coil

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - retainer, housing

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - coil

1шт.

13

NSS

NOT SOLD SEPARAT

COIL AND WIRE - solenoid

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - lower, coil

1шт.

Выбрано товаров: 18
