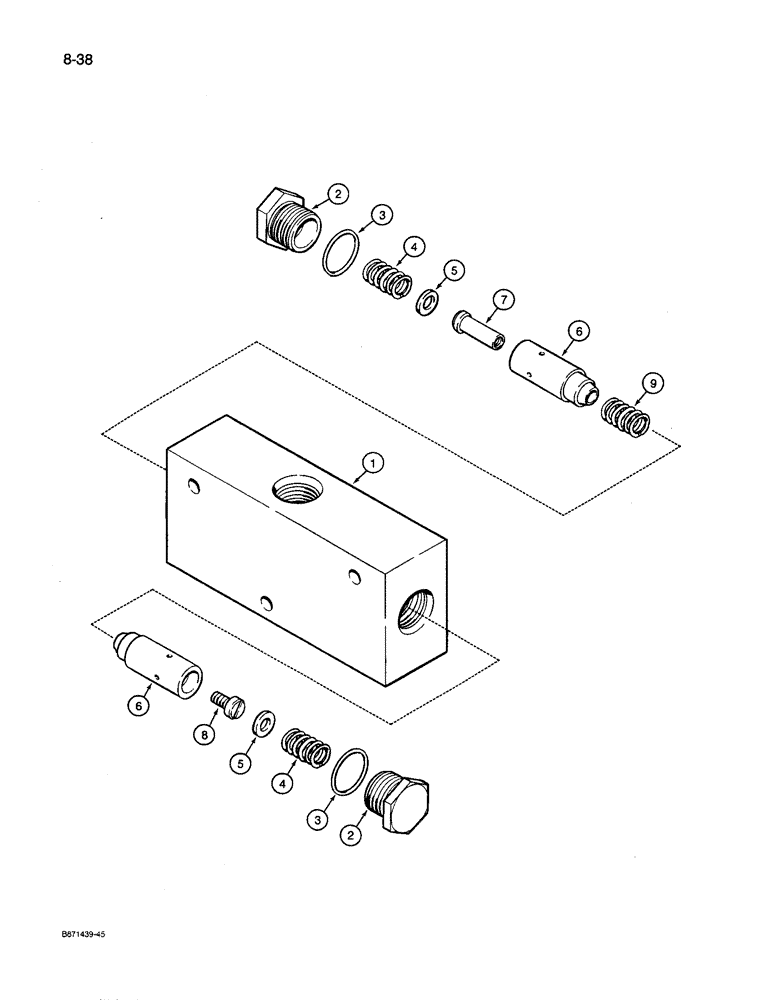

Запчасти Case IH 8600 (8-38) - FLOW DIVIDER VALVE, 85072C1 (08) - HYDRAULICS

85072C1

VALVE

ASSEMBLY - flow divider and combiner

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - spring retaining

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

2шт.

4

NSS

NOT SOLD SEPARAT

SPRING - valve, plug end

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER - spring retaining

2шт.

6

NSS

NOT SOLD SEPARAT

PISTON - valve

2шт.

7

NSS

NOT SOLD SEPARAT

SPACER - valve

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT - shoulder

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - valve, center

1шт.
