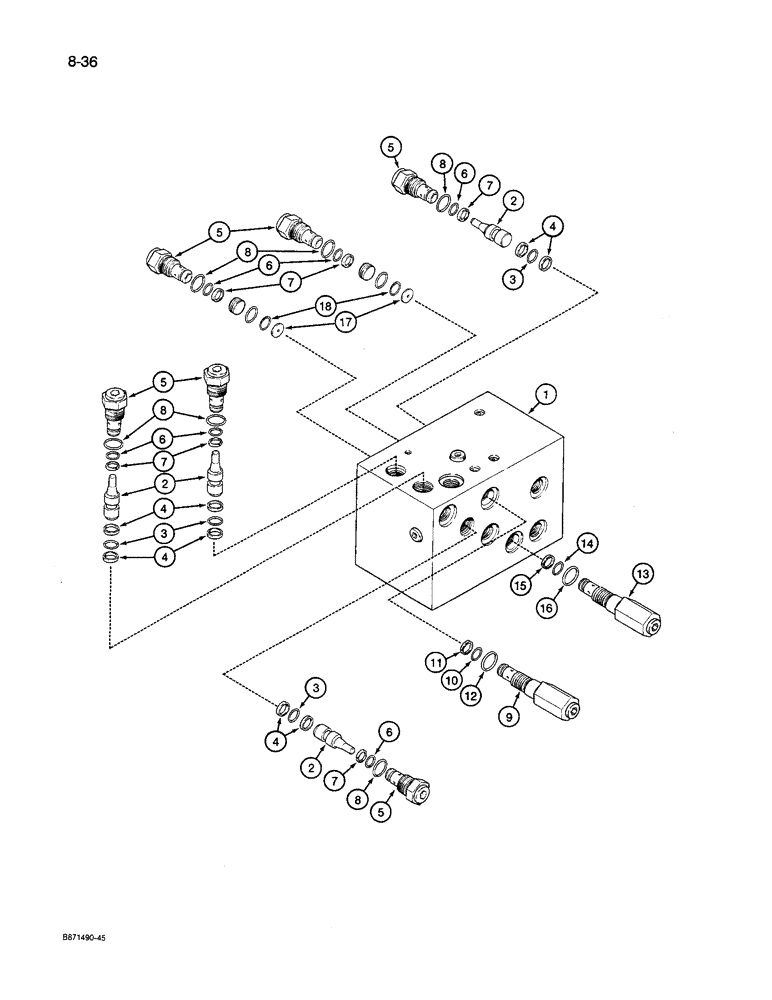

Запчасти Case IH 8600 (8-36) - COMPOSITE VALVE, 85007C1 (08) - HYDRAULICS

85007C1

VALVE

ASSEMBLY - composite

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve, composite

1шт.

2

1272343C2

PISTON

- pilot, valve

4шт.

149941C1

PACKAGE

KIT - seal, pilot piston

4шт.

3

NSS

NOT SOLD SEPARAT

O-RING - pilot piston

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

2шт.

149938C1

CHECK VALVE,7/8" - 14

VALVE ASSEMBLY - check, composite valve

6шт.

5

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

149942C1

SEAL KIT

KIT - seal, check valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - check valve, small

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, check valve O-ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - check valve body, large

1шт.

92543C1

VALVE

ASSEMBLY - relief, non-adjustable, factory set, 1700 PSI

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

149942C1

SEAL KIT

KIT - seal, relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - valve body, small

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, valve body O-ring

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - valve body, large

1шт.

92544C1

VALVE

ASSEMBLY - relief, adjustable, factory set at 1700 PSI

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

149942C1

SEAL KIT

KIT - seal, relief valve

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - relief valve body, small

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, valve body O-ring

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve body, large

1шт.

17

92545C1

DISC

- orifice, 0.063 inch (1.60 mm) diameter hole

2шт.

18

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, orifice disk

2шт.
