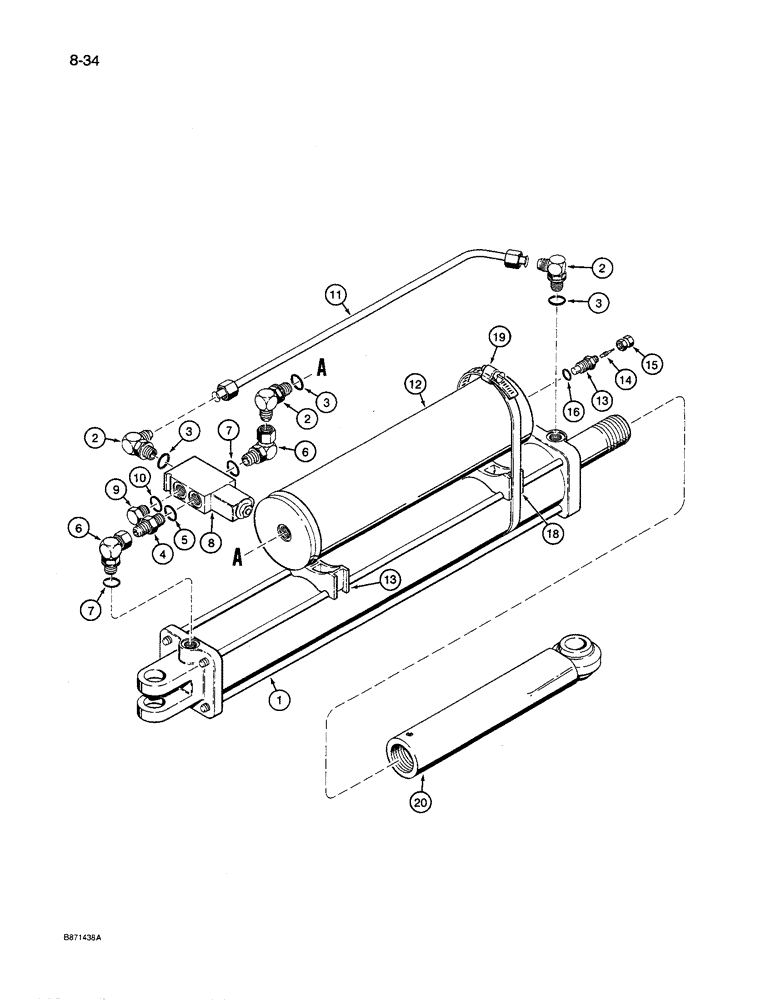

Запчасти Case IH 8600 (8-34) - HYDRAULIC CONTROL PARTS, HITCH STABILIZER CYLINDER (08) - HYDRAULICS

1

92958C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - hitch stabilizer, parts list page 8-61

1шт.

2

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable

3шт.

4

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, at stabilizer valve

1шт.

6

93365C1

FITTING

ELBOW - 90 degree, swivel

2шт.

8

93134C1

VALVE

ASSEMBLY - hitch stabilizer, parts list page 8-45

1шт.

9

9410359

PLUG

- hex head, port in hitch stabilizer valve

1шт.

11

1337262C2

HYD TUBE,0.5" OD, 582, 65 mm Length

TUBE - stabilizer cylinder rod end port to stabilizer valve

1шт.

1957928C1

ACCUMULATOR

ASSEMBLY - stabilizer

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - accumulator, stabilizer

1шт.

1978142C1

VALVE

ASSEMBLY - charge

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - charge valve

1шт.

14

1978143C1

PISTON

VALVE - charge

1шт.

15

1978144C1

CAP

- charge valve

1шт.

16

1978158C1

O-RING

- charge valve

1шт.

17

1341919C1

SEAL KIT

KIT - seal repair, accumulator, not shown

1шт.

18

1969068C1

SUPPORT

- mounting, Serial Range: accumulator-cylinder

2шт.

19

427313R91

HOSE CLAMP,#116, 6.88/7.75 Type F Worm

CLAMP - worm screw type, accumulator and support to cylinder

2шт.

20

97554C1

LINK

ASSEMBLY - hitch stabilizer cylinder, see page 9-69 for hitch and hopper frame mounting parts

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

3шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

2шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
