Запчасти Case IH 8600 (8-32) - HYDRAULIC CONTROL LINES, TO WING FOLD CYLINDERS (08) - HYDRAULICS

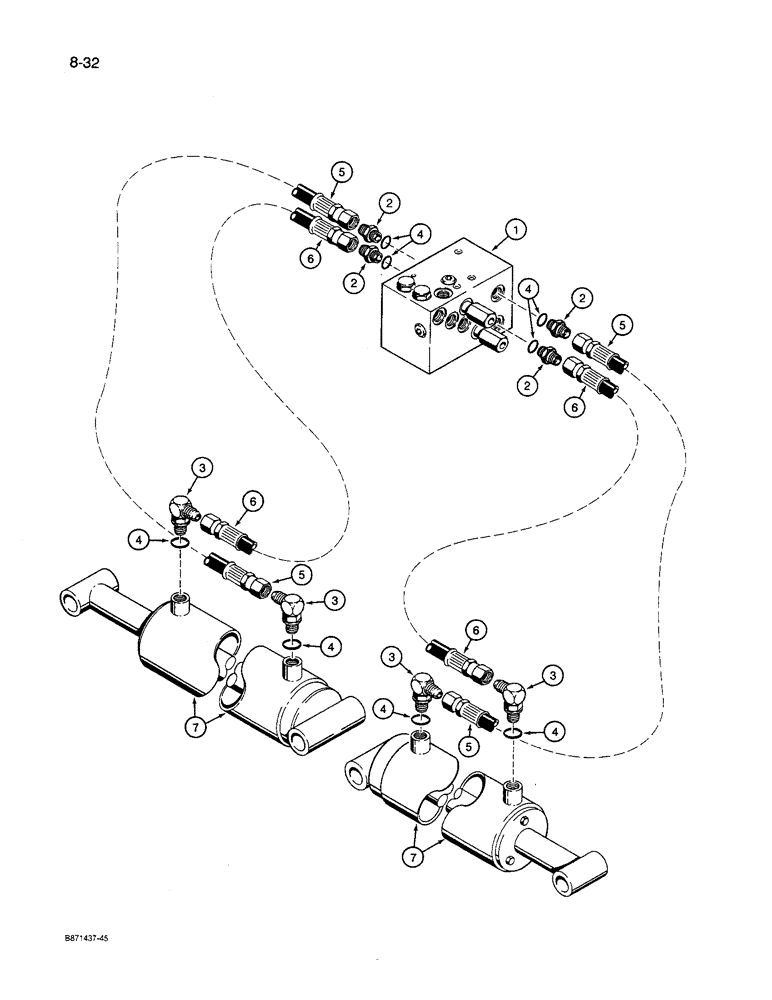

Схема запчастей Case IH 8600 - (8-32) - HYDRAULIC CONTROL LINES, TO WING FOLD CYLINDERS (08) - HYDRAULICS
2
4
2
4
6
6
3
4
6
4
3
6
5
7
1
4
5
7
3
4
2
2
5
5
3

Артикул

Название

Примечание

Количество

1

85007C1

VALVE

ASSEMBLY - composite, parts list page 8-37

1шт.

2

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

ADAPTER - straight, at P6, P7, P9 and P10 ports of composite valve

4шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, at rod and closed ends of wing fold cylinders

4шт.

5

88869C1

HOSE ASSY.

HOSE - 18-1/8" (460 mm) long, P6 and P7 ports of valve to closed ends of wing fold cylinders

2шт.

6

88870C1

HOSE ASSY.

HOSE - 28-15/16" (735 mm) long, P9 and P10 ports of valve to rod end of wing fold cylinders

2шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing fold, see pages 8-51 and 8-53 for correct cylinder

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter and elbow

8шт.

Выбрано товаров: 7
