Запчасти Case IH 8600 (8-30) - HYDRAULIC CONTROL LINES, TO MAIN FRAME DEPTH CONTROL CYLINDERS (08) - HYDRAULICS

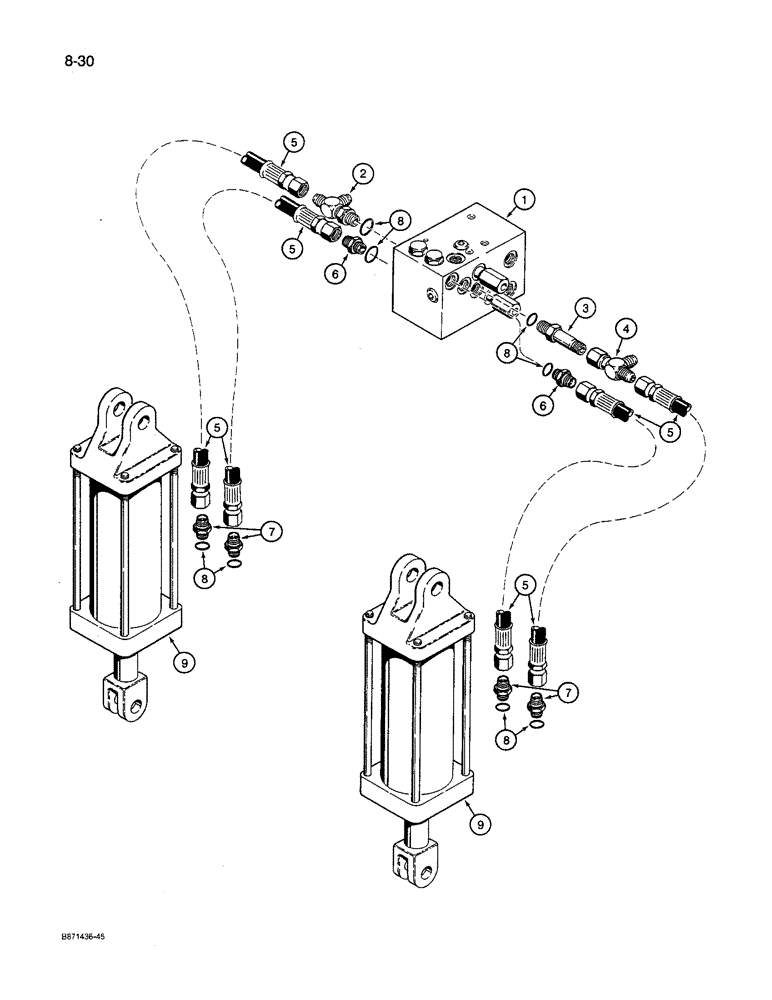

Схема запчастей Case IH 8600 - (8-30) - HYDRAULIC CONTROL LINES, TO MAIN FRAME DEPTH CONTROL CYLINDERS (08) - HYDRAULICS
8
5
6
1
2
5
8
7
8
6
9
7
9
5
5
5
4
8

Артикул

Название

Примечание

Количество

1

85007C1

VALVE

ASSEMBLY - composite, parts list page 8-37

1шт.

2

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable, at P4 port of valve, see page 8-29 for hydraulic line to wing frame depth control cylinder

1шт.

3

9410229

CONNECTOR, ELEC,3/4"-16, 37 Degree x 3/4"-16, Pipe

ADAPTER - straight, long, at P5 port of valve, see page 8-29 for hydraulic line to wing frame depth control cylinder

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, at P5 port of valve, see page 8-29 for hydraulic line to wing frame depth control cylinder

1шт.

6

93399C1

FITTING

ADAPTER - special, restrictor, at P2 and P3 ports of composite valve

2шт.

7

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, at extend and retract ports of cylinder

4шт.

9

1267177C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - main frame depth control, parts list page 8-49

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter and tee

8шт.

Выбрано товаров: 8
