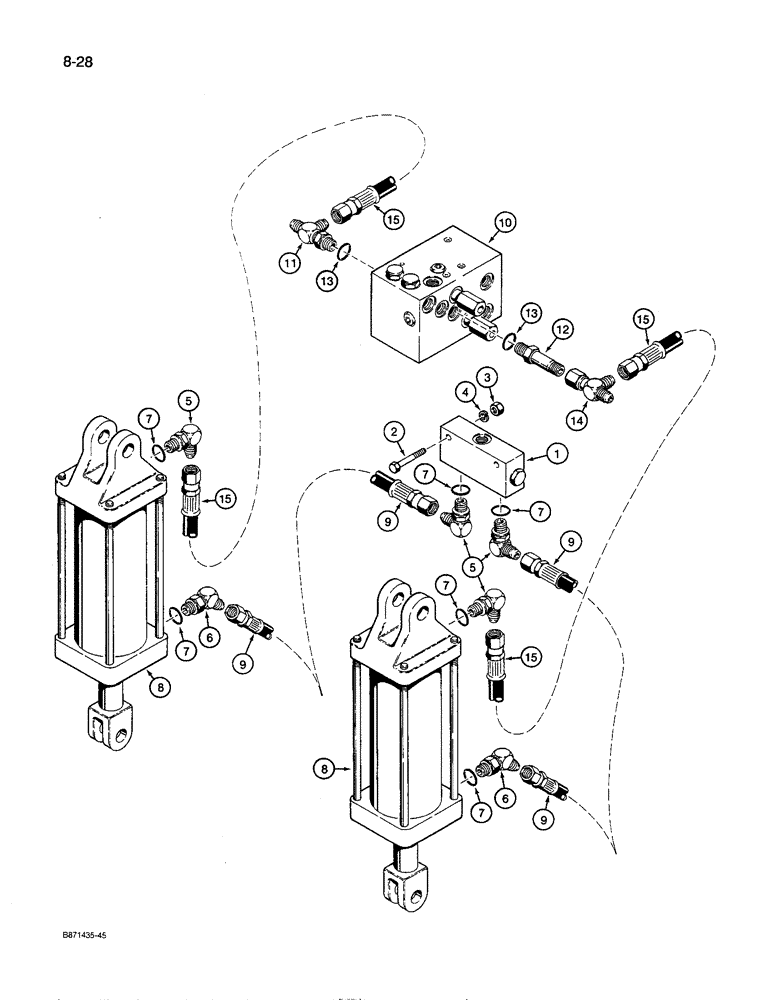

Запчасти Case IH 8600 (8-28) - HYDRAULIC CONTROL LINES, TO WING FRAME DEPTH CONTROL CYLINDERS (08) - HYDRAULICS

1

85072C1

VALVE

ASSEMBLY - hydraulic, flow divider, parts list page 8-39

1шт.

2

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex head, 5/16 inch - 18 NC x 2-1/4 inch, plated

2шт.

3

120376

NUT,5/16"-18, G5

2шт.

4

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, at flow divider valve and closed end of cylinder

4шт.

6

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degree, adjustable, at rod end of cylinder

2шт.

8

1267178C2

CYLINDER

ASSEMBLY - depth control, wing frame, parts list page 8-47

2шт.

9

88874C1

HOSE ASSY.

HOSE - 200-3/4 inch (5100 mm) long, flow divider valve to rod end of cylinders

2шт.

10

85007C1

VALVE

ASSEMBLY - composite, parts list page 8-37

1шт.

11

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable, at P4 port of composite valve

1шт.

12

9410229

CONNECTOR, ELEC,3/4"-16, 37 Degree x 3/4"-16, Pipe

ADAPTER - straight, long, at P5 port of composite valve

1шт.

14

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, at P5 port of composite valve

1шт.

15

88872C1

HOSE ASSY.

HOSE - 217-1/2 inch (5525 mm) long, composite valve to closed end of depth control cylinders

2шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

6шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter and tee

2шт.
