Запчасти Case IH 8600 (8-26) - HYDRAULIC CONTROL LINES, TO ROW MARKER VALVE AND CYLINDERS (08) - HYDRAULICS

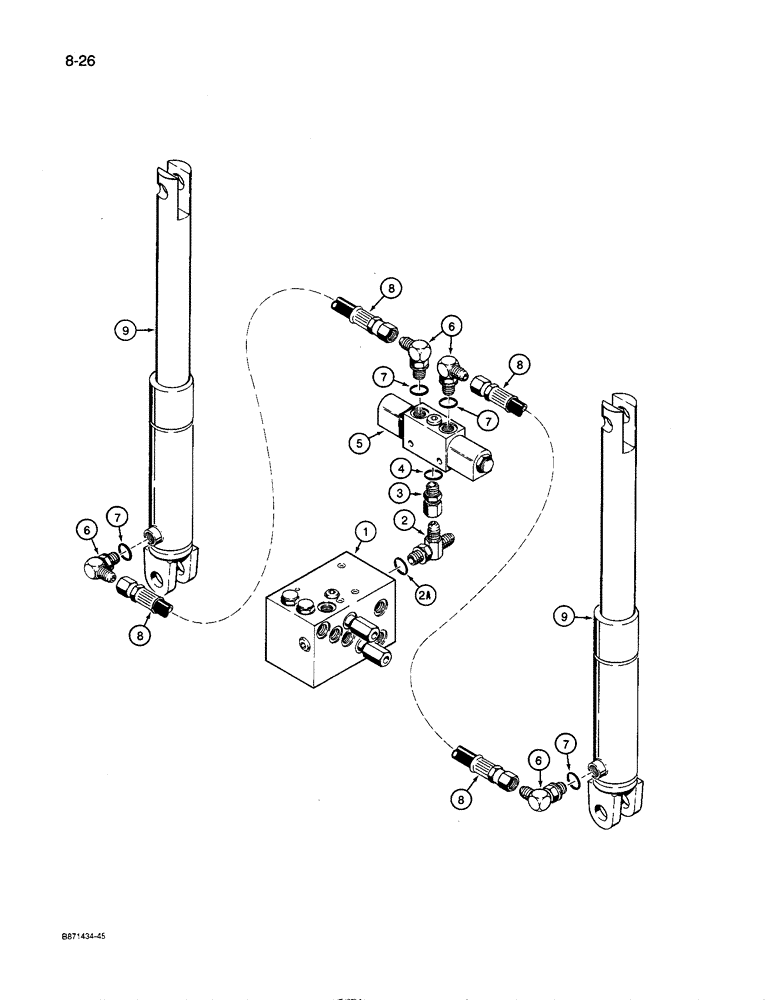

Схема запчастей Case IH 8600 - (8-26) - HYDRAULIC CONTROL LINES, TO ROW MARKER VALVE AND CYLINDERS (08) - HYDRAULICS
1
8
8
7
6
8
6
7
4
9
2a
6
3
7
5
8
7
9
2

Артикул

Название

Примечание

Количество

1

85007C1

VALVE

ASSEMBLY - composite, parts list page 8-37

1шт.

2

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable, at P1 port of composite valve, see page 8-21 for coupler connections

1шт.

3

1263944C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 JIC

ADAPTER - straight, special

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - row marker, see pages 8-41 and 8-43 for correct valve

1шт.

6

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable

4шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

4шт.

8

88873C1

HYDRAULIC HOSE,9.65 mm ID x 5850.00 mm

Marker Valve to Marker Cylinders 9.65 mm ID x 5850.00 mm

2шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - row marker, see pages 8-57 and 8-59 for correct cylinder

2шт.

2a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.
