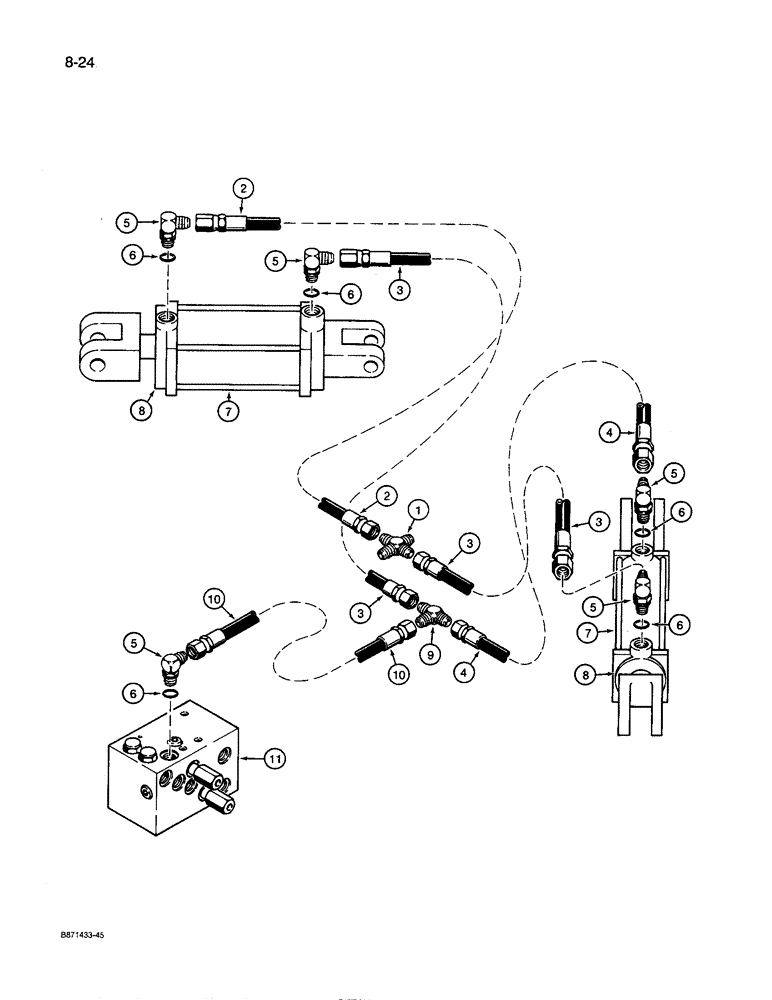

Запчасти Case IH 8600 (8-24) - HYDRAULIC CONTROL LINES, TO TRACK ERASER CYLINDERS (08) - HYDRAULICS

1

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - hydraulic, see page 8-21 for coupler connections

1шт.

2

1337952C1

HOSE,76.20 mm ID x 1700.00 mm

- 67 inch (1700 mm) long, cross to left-hand track eraser cylinder, rod end of cylinder

1шт.

3

1337953C1

HOSE,76.20 mm ID x 1350.00 mm

- 53-1/8 inch (1350 mm) long, cross to right-hand track eraser cylinder, rod end; tee to left-hand track eraser cylinder, closed end of cylinder

2шт.

4

1337954C1

HOSE,76.20 mm ID x 1000.00 mm

- 39-3/8 inch (1000 mm) long, tee to right-hand track eraser cylinder, closed end of cylinder

1шт.

5

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, at track eraser cylinders and P12 port of composite valve

5шт.

7

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - track eraser, parts list page 8-55

2шт.

8

145254C1

COLLAR ASSY.

COLLAR - stop, cylinder

2шт.

9

9402982

TEE,3/4"-16, 37 Degree

- closed end of cylinders to composite valve

1шт.

10

88928C1

HOSE ASSY.

HOSE - 90-1/2 inch (2300 mm) long, tee to composite valve, P12 port

1шт.

11

85007C1

VALVE

ASSEMBLY - composite, parts list page 8-37

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

5шт.
