Запчасти Case IH 8600 (8-22) - HYDRAULIC CONTROL LINES, WING FOLD COUPLERS TO COMPOSITE VALVE (08) - HYDRAULICS

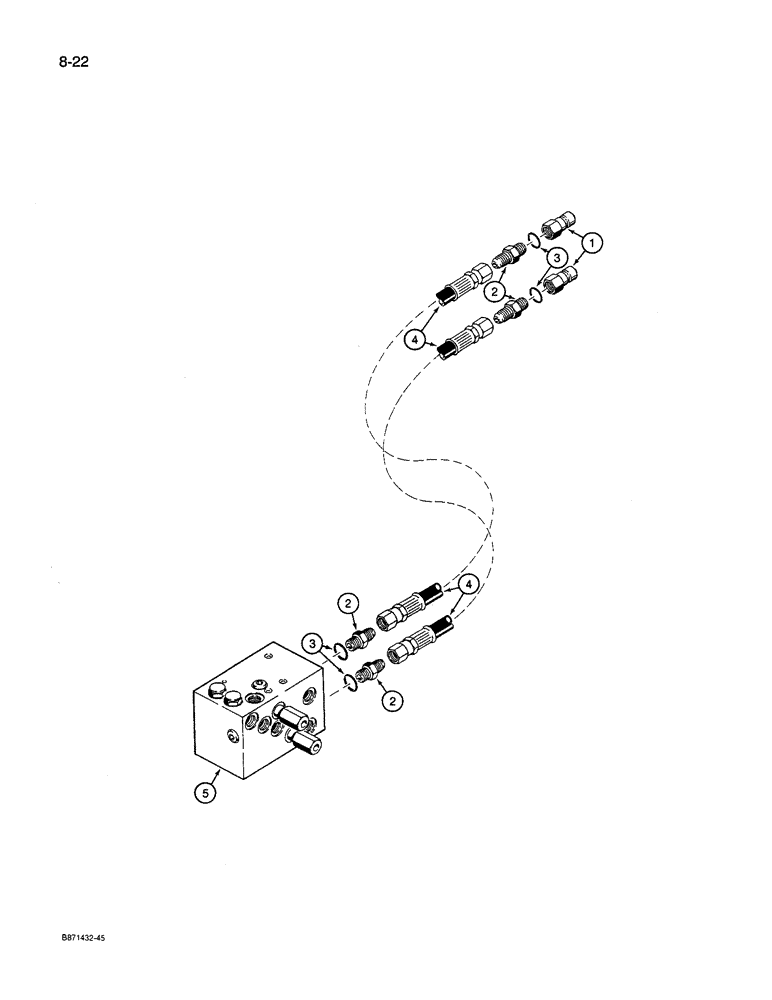

Схема запчастей Case IH 8600 - (8-22) - HYDRAULIC CONTROL LINES, WING FOLD COUPLERS TO COMPOSITE VALVE (08) - HYDRAULICS
3
3
5
2
4
4
1
2
2

Артикул

Название

Примечание

Количество

1

1285718C1

COUPLING

COUPLER - disconnect, male

2шт.

2

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, at couplers and P8 and P11 ports of composite valve

4шт.

4

1337205C1

HOSE,76.20 mm ID x 8700.00 mm

- 342-1/2 inch (8700 mm) long, couplers to P8 and P11 ports of composite valve

2шт.

5

85007C1

VALVE

ASSEMBLY - composite, parts list page 8-37

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

4шт.

Выбрано товаров: 5
