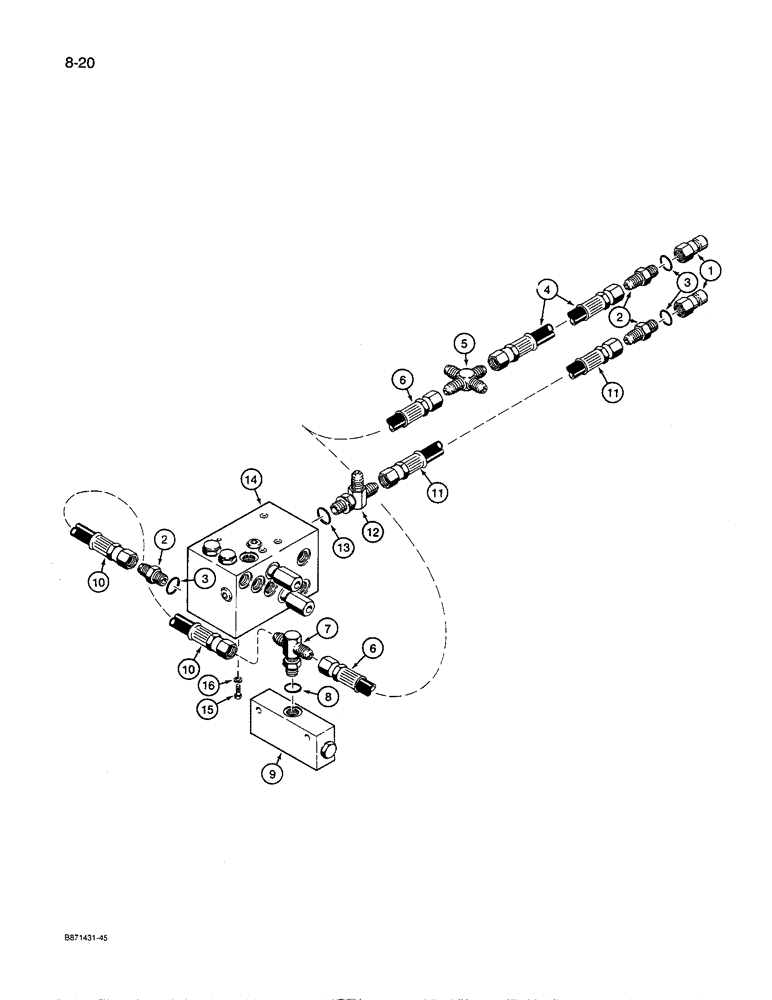

Запчасти Case IH 8600 (8-20) - HYDRAULIC CONTROL LINES, TOOL BAR LIFT COUPLERS TO COMPOSITE VALVE (08) - HYDRAULICS

1

1285718C1

COUPLING

COUPLER - disconnect, male

2шт.

2

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, at couplers and P16 port of composite valve

3шт.

4

1337830C1

HOSE,9.52 mm ID x 6500.00 mm

- 256 inch (6500 mm) long, coupler to hydraulic cross

1шт.

5

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - hydraulic

1шт.

6

88927C1

HOSE ASSY.

HOSE - 110-1/4 inch (2800 mm) long, cross to tee at flow divider

1шт.

7

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

- adjustable, at flow divider valve

1шт.

9

85072C1

VALVE

ASSEMBLY - hydraulic, flow divider, parts list page 8-39

1шт.

10

1337204C1

HYDRAULIC HOSE,0.38" ID x 19.75"

Flow Divider Tee to P16 Port of Composite Valve 0.38" ID x 19.75"

1шт.

11

1337205C1

HOSE,76.20 mm ID x 8700.00 mm

- 342-1/2 inch (8700 mm) long, coupler to P1 port of composite valve

1шт.

12

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable, at P1 port of composite valve

1шт.

14

85007C1

VALVE

ASSEMBLY - composite, parts list page 8-37

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

3шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.
