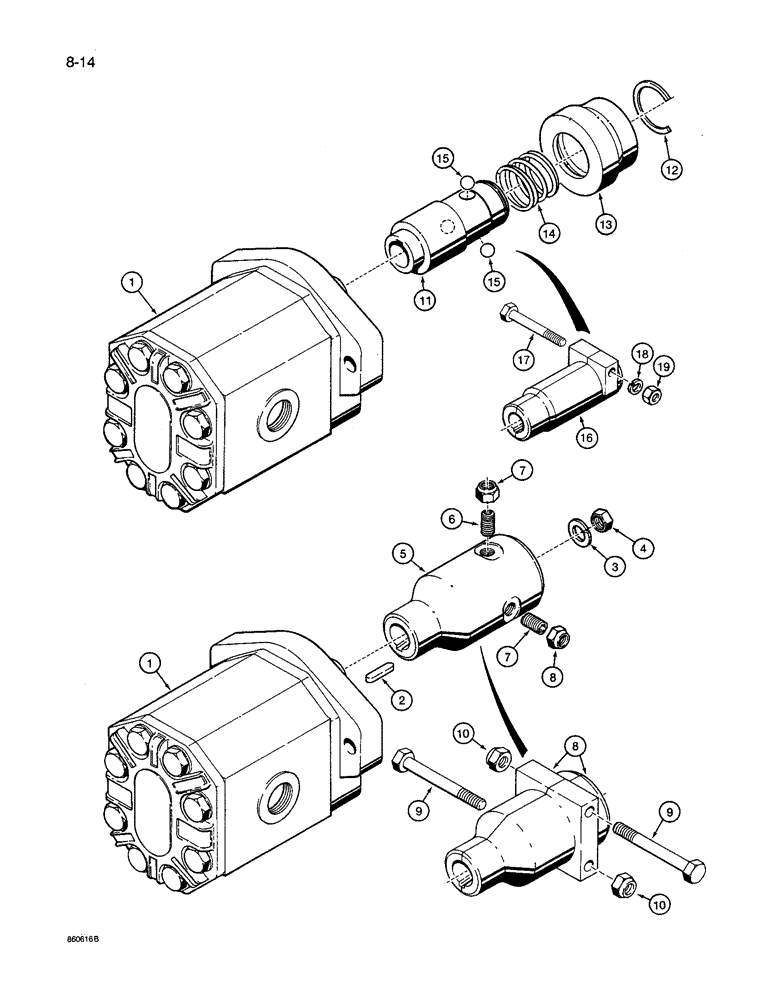

Запчасти Case IH 8600 (8-14) - HYDRAULIC PUMP ADAPTING PARTS (08) - HYDRAULICS

1

85036C91

PUMP

ASSEMBLY - hydraulic, fan drive, parts list page 8-9

1шт.

1343578C1R

REMAN-HYD PUMP

8600, Reman For New P/N 85036C91

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

177192C1

KEY

- shaft, Serial Range: pump-coupler

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

4

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

1277794C91

ADAPTER

COUPLER ASSEMBLY - pump to power takeoff, 1-3/4 inch spline, solid coupler, set screw retained, replaced by 1958268C1

1шт.

5

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

6

540814R1

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

- hex socket head, 1/2 NF x 1 inch

2шт.

7

19258R1

LOCK NUT,1/2"-20, GB

NUT - hex, self-locking, 1/2 inch NF

2шт.

1958268C1

COUPLING

COUPLER ASSEMBLY - pump to power takeoff, 1-3/4 inch spline, split coupler, bolt and locknut retained

1шт.

8

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

9

414-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- hex, 1/2 NF x 3-1/2 inch

2шт.

10

19258R1

LOCK NUT,1/2"-20, GB

NUT - hex, self-locking, 1/2 inch NF

2шт.

1279355C91

COUPLING

COUPLER ASSEMBLY - pump to power takeoff, 1-3/8 inch spline, spring and ball retained

1шт.

11

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

12

279762R1

SNAP RING,#168, Ext

Ring, Snap, , collar #168, Ext

1шт.

13

1279357C1

COLLAR

- coupler

1шт.

14

1279356C1

SPRING

- collar

1шт.

15

21505R1

BALL,1/2" Dia, Stainless

- steel, 1/2 inch diameter

3шт.

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

COUPLER ASSEMBLY - pump to power takeoff, 1-3/8 inch spline, split coupler, bolt, washer and nut retained

1шт.

16

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

17

114-404

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- hex, 1/2 NF x 2-1/2 inch

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

19

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.
