Запчасти Case IH 8600 (8-09A) - HYDRAULIC PUMP, 1343578C1 (08) - HYDRAULICS

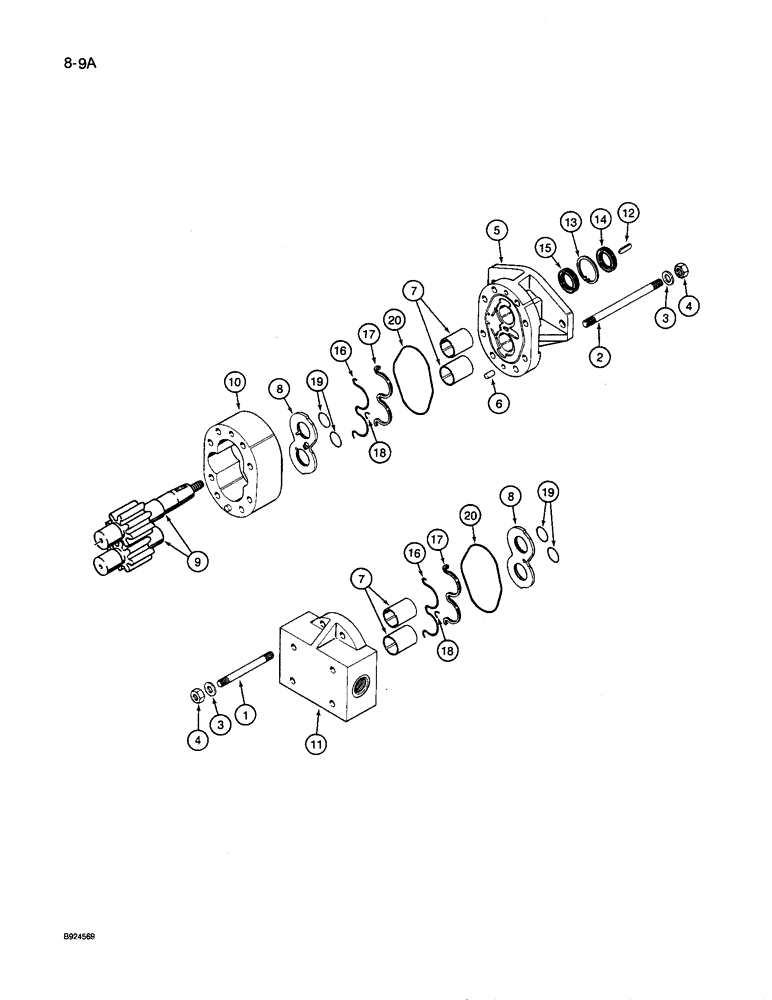

Схема запчастей Case IH 8600 - (8-09A) - HYDRAULIC PUMP, 1343578C1 (08) - HYDRAULICS
7
3
16
16
5
20
15
17
10
3
18
12
20
4
2
19
9
14
1
7
19
8
6
18
11
8
4
17
13

Артикул

Название

Примечание

Количество

1343578C1

PUMP

ASSEMBLy - hydraulic, fan drive system

1шт.

1343578C1R

REMAN-HYD PUMP

8600

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - tie, pump cover and body, short

4шт.

2

NSS

NOT SOLD SEPARAT

BOLT - tie, pump cover and body, long

4шт.

3

NSS

NOT SOLD SEPARAT

WASHER - flat, tie bolt

16шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, tie bolt

16шт.

5

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

6

NSS

NOT SOLD SEPARAT

PIN - dowell, cover

2шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - pump

4шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear, pump

2шт.

9

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - drive and driven, matched set

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

12

177192C1

KEY

-, Serial Range: coupler-shaft

1шт.

1543178C1

SEAL KIT

KIT - seal, pump

1шт.

13

NSS

NOT SOLD SEPARAT

RING - retaining, seal

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - shaft, outer

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - shaft, inner

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - pressure, large

2шт.

17

NSS

NOT SOLD SEPARAT

SPACER - seal

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - pressure, small

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - wear plate

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: covers-body

2шт.

Выбрано товаров: 24
