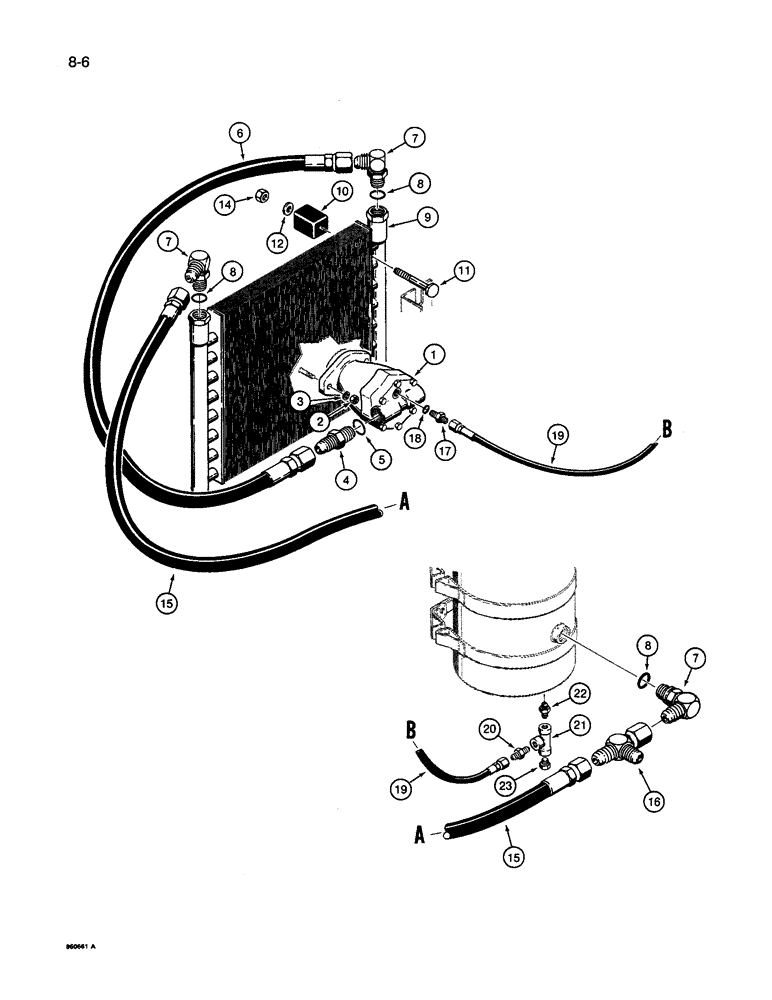

Запчасти Case IH 8600 (8-06) - FAN HYDRAULIC SYSTEM, OIL COOLER AND RETURN LINES, USED WITH P.T.O. PUMP PRESSURE (08) - HYDRAULICS

1

85005C92

MOTOR

ASSEMBLY - fan, parts list page 8-17

1шт.

85005C93R

REMAN-HYD MOTOR

8600 REMAN FOR NEW P/N 85005C92

1шт.

85005C93C

CORE-MOTOR HYDRAULIC

RETURN NUMBER

1шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch thread

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

843063C1

HYDRAULIC HOSE,0.75" ID x 52.00"

To Cooler Inlet 0.75" ID x 52.00"

1шт.

7

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, 1-1/16-12 inch thread

3шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

92450C1

COOLER

OIL COOLER -hydraulic

1шт.

10

828830C1

STRIP

INSULATOR - rubber, cooler mounting

4шт.

11

433-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - carriage, 5/16 NC x 2-3/4 inch

4шт.

12

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

4шт.

14

9413952

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

15

843068C1

HYDRAULIC HOSE,0.75" ID x 65.00", SAE 100R1

0.75" ID x 65.00", Return, Cooler Outlet to Reservoir

1шт.

16

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

at reservoir 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

19

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

Motor drain 0.25" ID x 33.00"

1шт.

20

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

1шт.

21

1289479C1

TEE

- female, 1/4 inch NPT

1шт.

22

443990

REDUCER,3/8"-18 NPTF x 1/4"-18 NPTF

- tee to reservoir, 1/4 inch NPT x 3/8 inch NPT

1шт.

23

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4 inch PT

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
