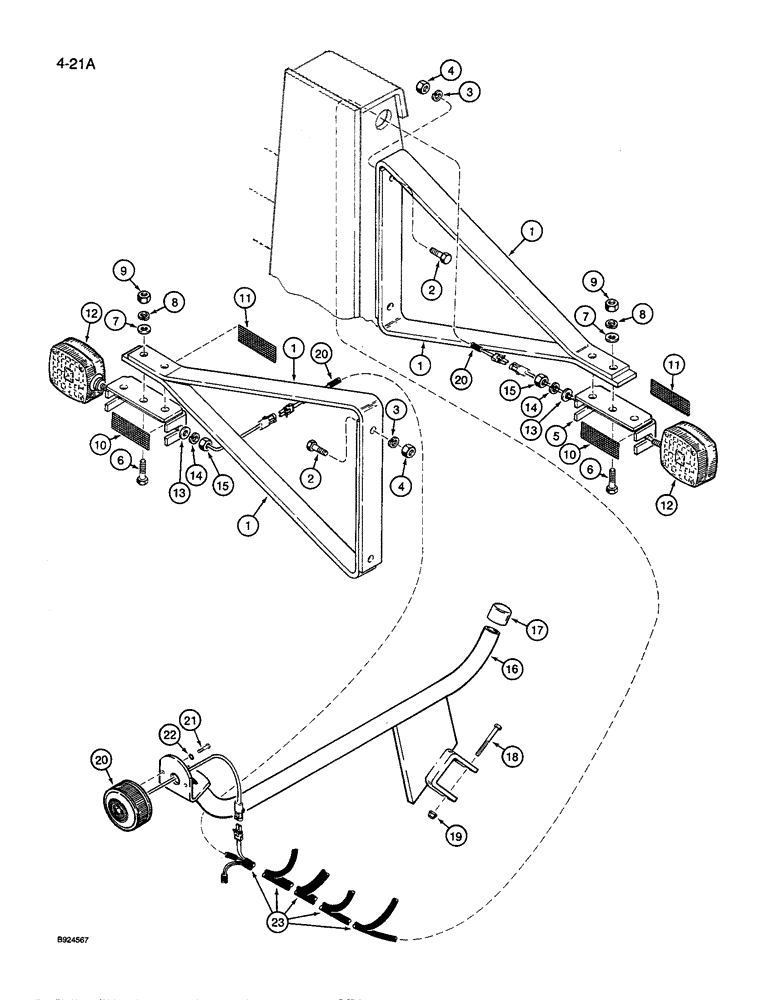

Запчасти Case IH 8600 (4-21A) - TRANSPORT LAMPS AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

1344786C1

BAR

BRACKET - lamp mounting, amber flasher

4шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

1344784C1

SUPPORT

BRACKET - mounting, reflector and flasher lamp, includes one each of items 10 and 11

2шт.

6

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

1284374C1

REFLECTOR,Reflector Red

- rear, red

2шт.

11

1284365C2

REFLECTOR

- front, amber

2шт.

12

91913C91

LIGHT

LAMP ASSEMBLY - flasher, amber, parts list page 4-23

2шт.

13

20601R1

WASHER

- flat, 1/2 inch ID x 0.105 inch (2.67 mm) thick

2шт.

14

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

129-125

NUT,1/2"-20, G5

2шт.

16

841213C1

SUPPORT

BRACKET - mounting, tail lamp

1шт.

17

842863C1

CAP

- end, bracket

1шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock

1шт.

20

91986C91

LIGHT

LAMP ASSEMBLY - tail, red, parts list page 4-25

1шт.

21

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head, self-tapping, No. 10 - 24 NC x 1/2"

2шт.

22

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal-external tooth lock, No. 10

2шт.

23

REF

INSTRUCTION

HARNESS - tool bar, see pages 4-11 through 4-15 for correct harness

1шт.
