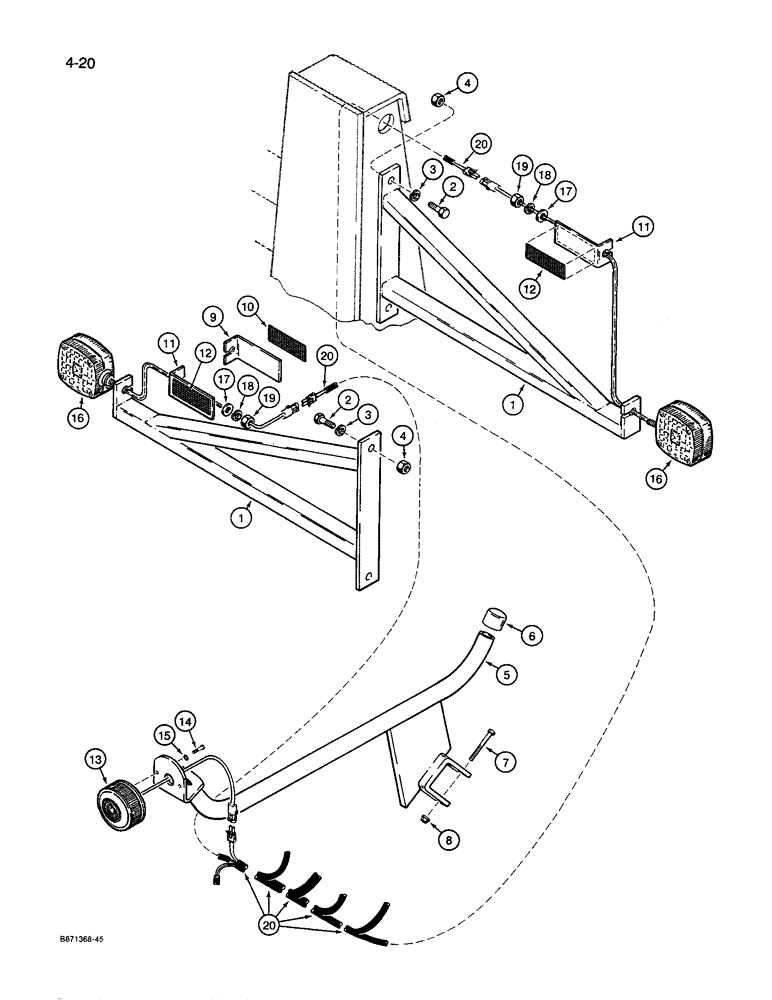

Запчасти Case IH 8600 (4-20) - TRANSPORT LAMPS AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

841206C1

BRACKET

SUPPORT - lamp, amber flasher

2шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

841213C1

SUPPORT

- tail lamp

1шт.

6

842863C1

CAP

- end, support::1rt

1шт.

7

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

9

1960573C1

PLATE ASSY.

PLATE ASSEMBLY - mounting, amber reflector, front

1шт.

10

1284365C2

REFLECTOR

- amber, front

1шт.

11

1960572C1

PLATE ASSY.

PLATE ASSEMBLY - mounting, red reflector, rear

2шт.

12

1284374C1

REFLECTOR,Reflector Red

- red, rear

1шт.

13

91986C91

LIGHT

LAMP ASSEMLY - tail, red, parts list page 4-25

1шт.

14

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1/2 inch

2шт.

15

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal/external lock, No. 10

2шт.

16

91913C91

LIGHT

LAMP ASSEMBLY - flasher, parts list page 4-23

2шт.

17

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

18

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

19

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

20

REF

INSTRUCTION

HARNESS - tool bar, see pages 4-11 through 4-15 for correct harness

1шт.
