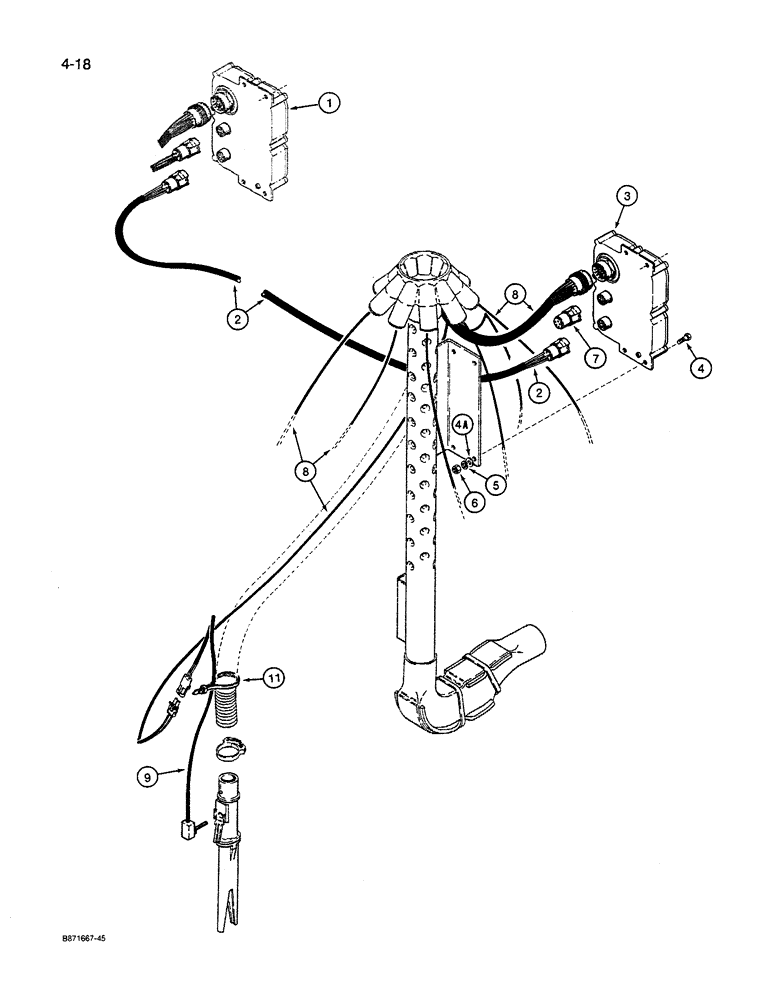

Запчасти Case IH 8600 (4-18) - BLOCKAGE MODULES AND PIN SENSORS, UNITS WITH 9 INCH ROW SPACING AND BLOCKAGE MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

91482C2

CONTROL

MODULE - blockage, number 3 and 4, see page 4-15 for tool bar harness connection

2шт.

2

91892C1

HARNESS

- jumper, to blockage modules 1, 2 and 5

3шт.

3

91482C2

CONTROL

MODULE - blockage, new, number 1, 2 and 5, see page 4-13, item 6 for remanufactured module and return part numbers

3шт.

4

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

12шт.

4a

120392

WASHER,1/4", SAE

- flat, 1/4"

12шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

6

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

7

1337046C1

PLUG

- terminator, blockage module, used at number 1 and 5 modules

2шт.

8

91893C1

HARNESS

- at manifold pipe, blockage module to pin sensor

5шт.

9

84202C2

SENSOR

PIN AND WIRE - blockage module, at furrow openers

40шт.

10

RESERVED

1шт.

11

533959R1

CABLE TIE,.135" x 11"

STRAP - nylon tie, small, sensor wire to furrow opener hoses

1шт.
