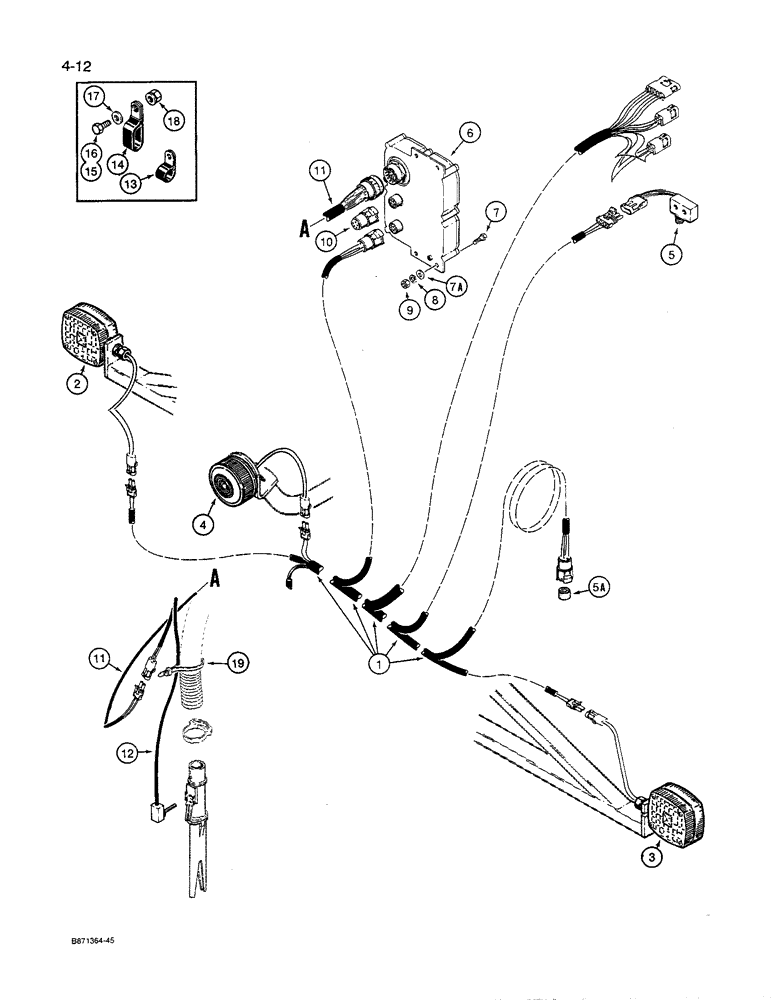

Запчасти Case IH 8600 (4-12) - TOOL BAR HARNESS AND BLOCKAGE MODULE, UNITS WITH 9 INCH ROW SPACING AND FUNCTION MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

91984C3

HARNESS

- tool bar, 9 inch row spacing, to blockage module number 4, to transport lamps and clutch switch

1шт.

2

91913C91

LIGHT

LAMP ASSEMBLY - flasher, left-hand, parts list page 4-23

1шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - flasher, right-hand, parts list page 4-23

1шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, left-hand, parts list page 4-25

1шт.

5

84053C1

SWITCH

AND WIRE ASSEMBLY - micro, drive clutch, see page 9-47 for related parts

1шт.

5a

92202C1

PLUG

- terminator, harness

1шт.

6

1935102C1

REMAN-ELECT MONITOR

MODULE - blockage, remanufactured, number 4

1шт.

6

1935103C1

CORE

RETURN NUMBER - use this part number to return module core for credit when using a remanufactured assembly

1шт.

6

91482C2

CONTROL

MODULE - blockage, new, number 4

1шт.

7

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

7a

120392

WASHER,1/4", SAE

- flat, 1/4"

4шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

10

1337046C1

PLUG

- terminator, blockage module

1шт.

11

91980C1

HARNESS

- module to sensor pins

1шт.

12

84202C2

SENSOR

PIN AND WIRE - module harness to furrow openers

5шт.

13

1251744C2

CLAMP

- harness to tool bar, 3/4" ID

1шт.

14

1969436C1

CLIP

CLAMP - harness to tool bar, 1-3/16" ID

1шт.

15

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex head, 3/8" - 16 NC x 1/2", harness clamp to weldnuts on tool bar

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Harness clamp Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

17

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

1шт.

18

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8" - 16 NC

1шт.

19

533959R1

CABLE TIE,.135" x 11"

STRAP - nylon tie, small

1шт.
