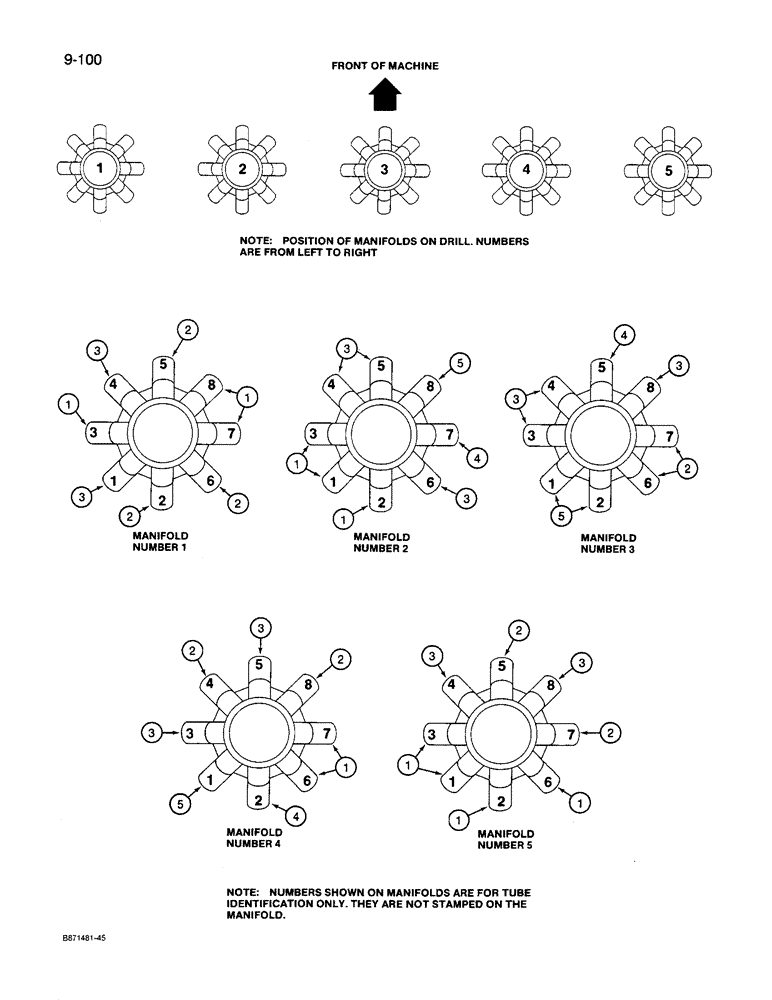

Запчасти Case IH 8600 (9-100) - AIR SYSTEM HOSES, 1-3/8 INCH ID, MANIFOLD TO FURROW OPENERS, UNITS WITH 9 INCH ROW SPACING (09) - CHASSIS/ATTACHMENTS
1
3
2
2
3
4
2
3
3
2
3
1
1
1
3
2
3
5
5
4
5
3
4
2
1
3
3
1
1
2
1
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOSE - 63 inch (1600 mm) long, cut from 1333818C1 bulk roll, see below
12шт.
2
REF
INSTRUCTION
HOSE - 68 inch (1727 mm) long, cut from 1333818C1 bulk roll, see below
9шт.
3
REF
INSTRUCTION
HOSE - 74 inch (1880 mm) long, cut from 1333818C1 bulk roll, see below
12шт.
4
REF
INSTRUCTION
HOSE - 79 inch (2007 mm) long, cut from 1333818C1 bulk roll, see below
3шт.
5
REF
INSTRUCTION
HOSE - 84 inch (2134 mm) long, cut from 1333818C1 bulk roll, see below
4шт.
1333818C1
HOSE,100.00"
- manifold to furrow openers, bulk roll, 1-3/8 inch (34.9 mm) ID x 100 ft (30.48 m) long
1шт.
