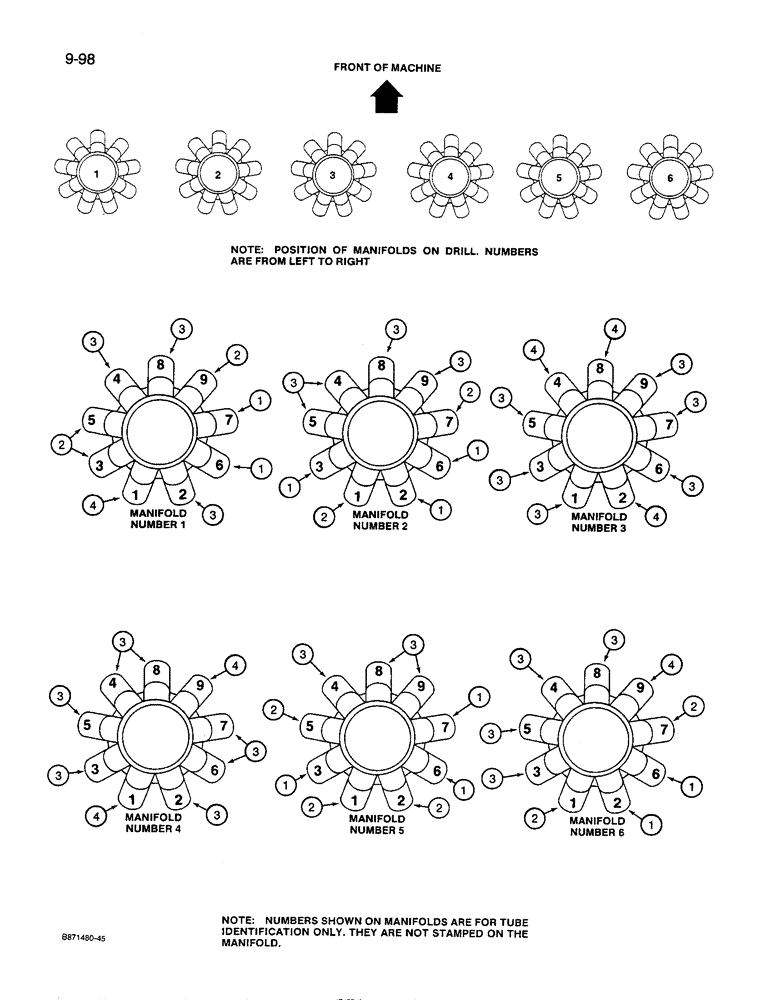

Запчасти Case IH 8600 (9-098) - AIR SYSTEM HOSES, 1-3/8 INCH ID, MANIFOLD TO FURROW OPENERS, UNITS WITH 6-1/2 INCH ROW SPACING (09) - CHASSIS/ATTACHMENTS
3
4
3
1
3
3
1
2
3
3
3
1
4
4
1
3
4
1
3
3
2
3
3
3
1
4
2
3
3
2
2
3
1
2
3
3
3
1
2
4
3
3
2
3
1
2
1
3
4
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOSE - 63 inch (1600 mm) long, cut from 1333818C1 bulk roll, see below
10шт.
2
REF
INSTRUCTION
HOSE - 68 inch (1727 mm) long, cut from 1333818C1 bulk roll, see below
10шт.
3
REF
INSTRUCTION
HOSE - 74 inch (1880 mm) long, cut from 1333818C1 bulk roll, see below
27шт.
4
REF
INSTRUCTION
HOSE - 79 inch (2007 mm) long, cut from 1333818C1 bulk roll, see below
7шт.
1333818C1
HOSE,100.00"
- manifold to furrow openers, bulk roll, 1-3/8 inch (34.9 mm) ID x 100 ft (30.48 m) long
1шт.
