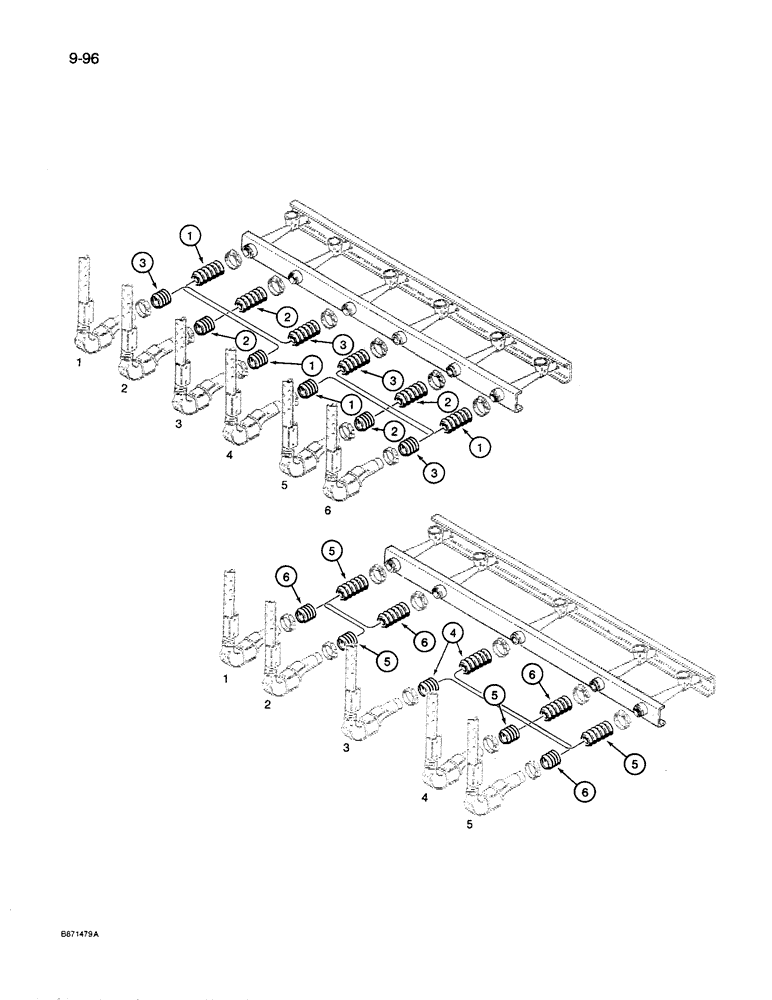

Запчасти Case IH 8600 (9-096) - AIR SYSTEM HOSES, 2-1/2 INCH ID, VENTURIS TO MANIFOLD PIPES (09) - CHASSIS/ATTACHMENTS

1

841630C1

HOSE - 90 inch (2286 mm) long, venturi to manifold pipe, cut from bulk rolls, see below

2шт.

2

1333743C1

HOSE - 172 inch (4360 mm) long, venturi to manifold pipe, cut from bulk rolls, see below

2шт.

3

1333742C1

HOSE - 216 inch (5486 mm) long, venturi to manifold pipe, cut from bulk rolls, see below

2шт.

4

841630C1

HOSE - 90 inch (2286 mm) long, venturi to manifold pipe, cut from bulk rolls, see below UNITS WITH 9 INCH ROW SPACING

1шт.

5

1333743C1

HOSE - 172 inch (4360 mm) long, venturi to manifold pipe, cut from bulk rolls, see below UNITS WITH 9 INCH ROW SPACING

2шт.

6

1333742C1

HOSE - 216 inch (5486 mm) long, venturi to manifold pipe, cut from bulk rolls, see below UNITS WITH 9 INCH ROW SPACING

2шт.

86993497

HOSE,2.50" ID

1978964C1 Sold by the Foot, Units with 9 Inch Row Spacing UNITS WITH 9 INCH ROW SPACING 2.50" ID

1шт.

1978963C1

HOSE

- venturi to manifold pipe, bulk roll, 2-1/2 inch (63.5 mm) ID x 81 ft (24.69 m) long UNITS WITH 9 INCH ROW SPACING

1шт.
