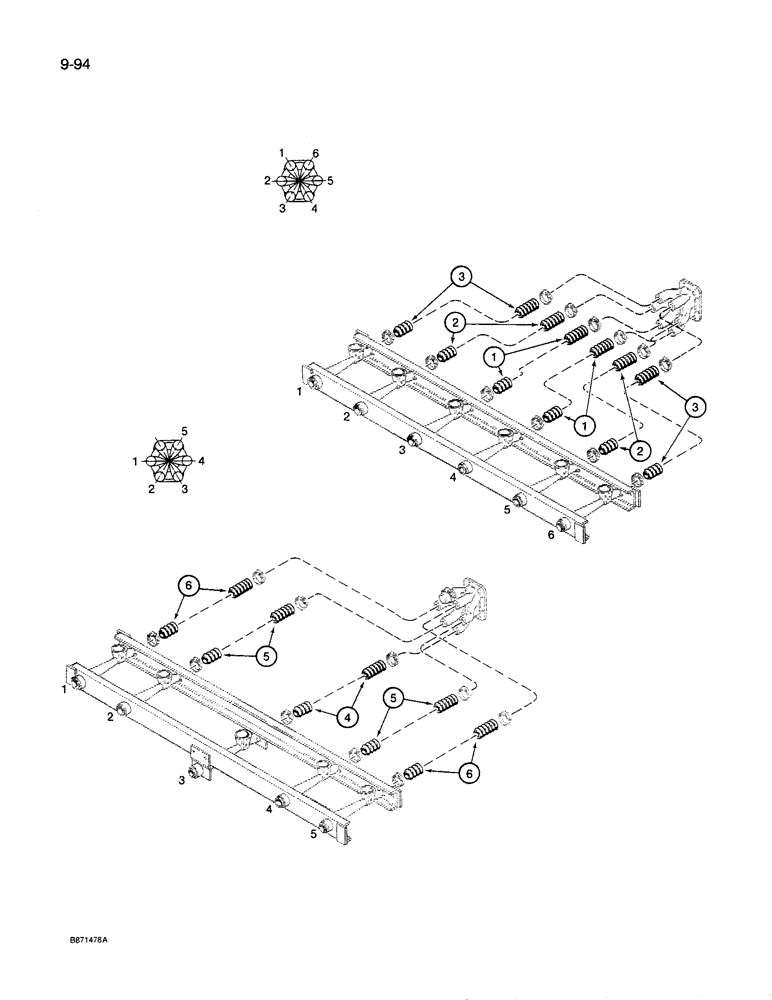

Запчасти Case IH 8600 (9-094) - AIR SYSTEM HOSES, 2 INCH ID, FAN MANIFOLD TO VENTURIS (09) - CHASSIS/ATTACHMENTS

1

843077C1

HOSE - 17 inch (432 mm) long, manifold to venturi, cut from 1333819C1 bulk roll, see below

2шт.

2

842024C1

HOSE - 20 inch (508 mm) long, manifold to venturi, cut from 1333819C1 bulk roll, see below

2шт.

3

843002C1

HOSE - 32-1/2 inch (826 mm) long, manifold to venturi, cut from 1333819C1 bulk roll, see below

2шт.

4

843077C1

HOSE - 17 inch (432 mm) long, manifold to venturi, cut from 1333819C1 bulk roll, see below UNITS WITH 9 INCH ROW SPACING

1шт.

5

842024C1

HOSE - 20 inch (508 mm) long, manifold to venturi, cut from 1333819C1 bulk roll, see below UNITS WITH 9 INCH ROW SPACING

2шт.

6

843002C1

HOSE - 32-1/2 inch (826 mm) long, manifold to venturi, cut from 1333819C1 bulk roll, see below UNITS WITH 9 INCH ROW SPACING

2шт.

1333819C1

HOSE,2.00" ID x 20.00"

- manifold to venturi, bulk roll, 2.0 inch (50.8 mm) ID x 100 ft (30.48 m) long UNITS WITH 9 INCH ROW SPACING

1шт.
