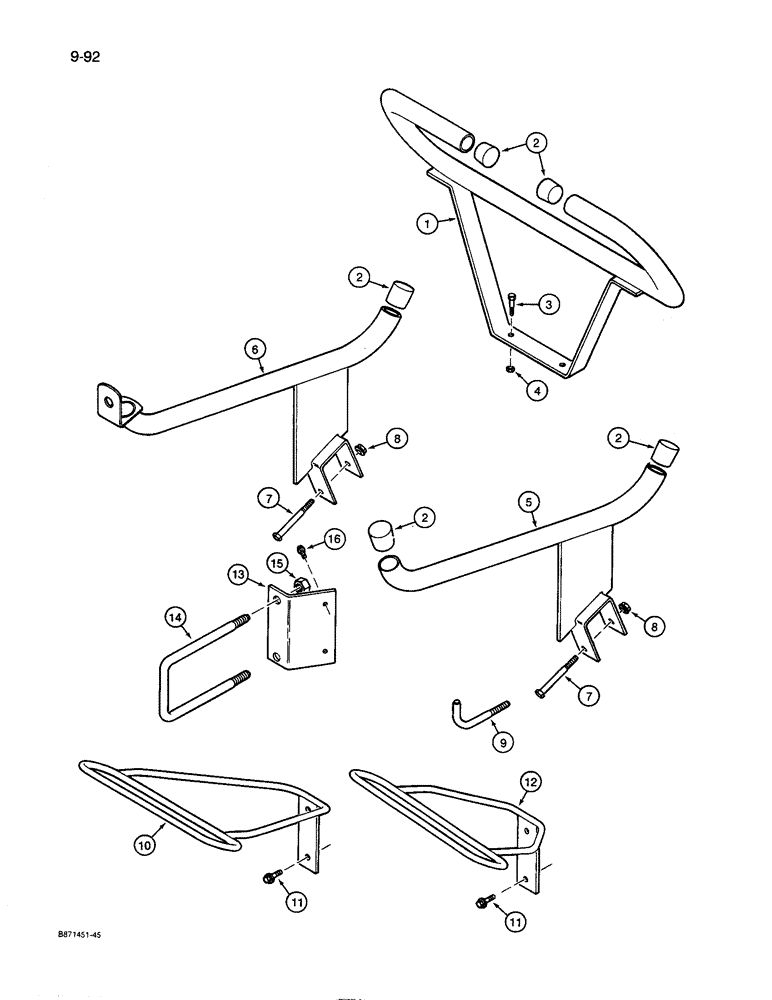

Запчасти Case IH 8600 (9-092) - HOSE SUPPORTS, HOSES TO MANIFOLD PIPES AND FURROW OPENERS (09) - CHASSIS/ATTACHMENTS

1

1958261C1

SUPPORT ASSY.

SUPPORT - hose, venturi to manifold pipe, at tool bar hitch

1шт.

2

842863C1

CAP

- end, hose support

5шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch - 16 NC

2шт.

5

842613C1

SUPPORT

- hose, venturi to manifold pipe, at tool bar main frame, right-hand side

1шт.

6

841213C1

SUPPORT

- hose, venturi to manifold pipe, at tool bar main frame, left-hand side; also used for tail lamp mounting, see page 4-21

1шт.

7

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8 inch - 16 NC

2шт.

9

842859C1

BAR

SUPPORT - hose, venturi to manifold pipe, at tool bar wing frame

2шт.

10

89222C1

SUPPORT

- hose, manifold pipe to furrow openers, at tool bar wing frames

4шт.

11

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex head, flange lock, 3/8 inch - 16 NC x 1-1/4 inch

8шт.

12

89221C1

SUPPORT

- hose, manifold pipe to furrow openers, at tool bar main frame; 1 used with 9 inch row space units, 2 used with 6-1/2 inch row space units

1-2шт.

13

88907C1

PLATE

BRACKET - mounting, hose support and manifold pipe, at tool bar main frame; 1 used with 9 inch row space units, 2 used with 6-1/2 inch row space units

1-2шт.

14

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- bracket and support to main frame

1-2шт.

15

129-107

NUT,5/8"-11, G5

2-4шт.

16

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex head, flange lock, 3/8 inch - 16 NC x 1 inch, manifold pipe to bracket at main frame

2-4шт.
