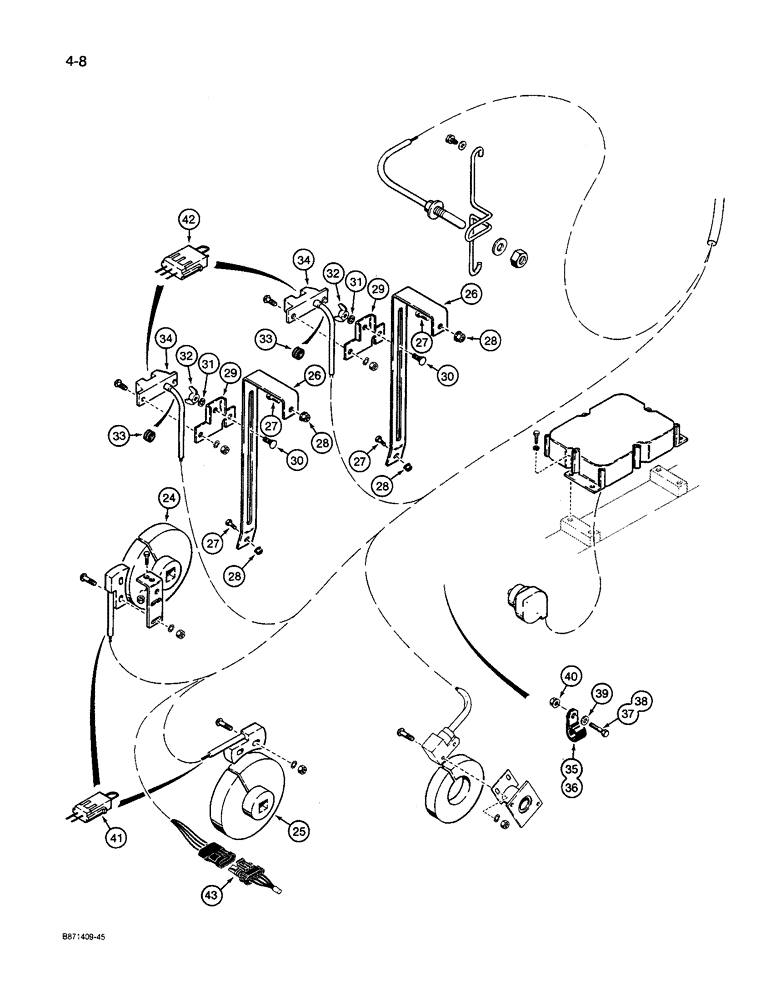

Запчасти Case IH 8600 (4-08) - CART HARNESS, REMOTE MODULE AND SENSORS (04) - ELECTRICAL SYSTEMS

24

1337084C1

KIT

- actuator, grain shaft speed, includes mounting hardware

1шт.

25

1337082C1

KIT

- actuator, fertilizer shaft speed, includes mounting hardware

1шт.

26

88865C1

SUPPORT

- bin level sensors, grain and fertilizer

1-2шт.

27

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2-4шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16" - 18 NC

2-4шт.

29

842825C1

BRACKET

- bin level sensor

1-2шт.

30

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 3/4"

1-2шт.

31

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1-2шт.

32

7500032

BUSHING

NUT - wing, 5/16" - 18 NC

1-2шт.

33

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, sensor wires at hopper

1-2шт.

34

84204C1

SENSOR

- bin level, grain and fertilizer

1-2шт.

35

1969436C1

CLIP

CLAMP - harness to cart frame, 1-3/16" diameter

1шт.

36

1251744C2

CLAMP

- harness to cart frame, 3/4" diameter

1шт.

37

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex, 3/8 NC x 1/2 inch, clamps to frame weldnuts

1шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, clamps to frame holes

1шт.

39

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

1шт.

40

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8" - 16 NC

1шт.

41

1337045C1

PLUG

- shorting, sensor, 2 wire, if used

1-2шт.

42

1337041C1

PLUG

- shorting, sensor, 3 wire, if used

1-2шт.

43

92203C1

PLUG

- termination, to grass sensor harness

1шт.
