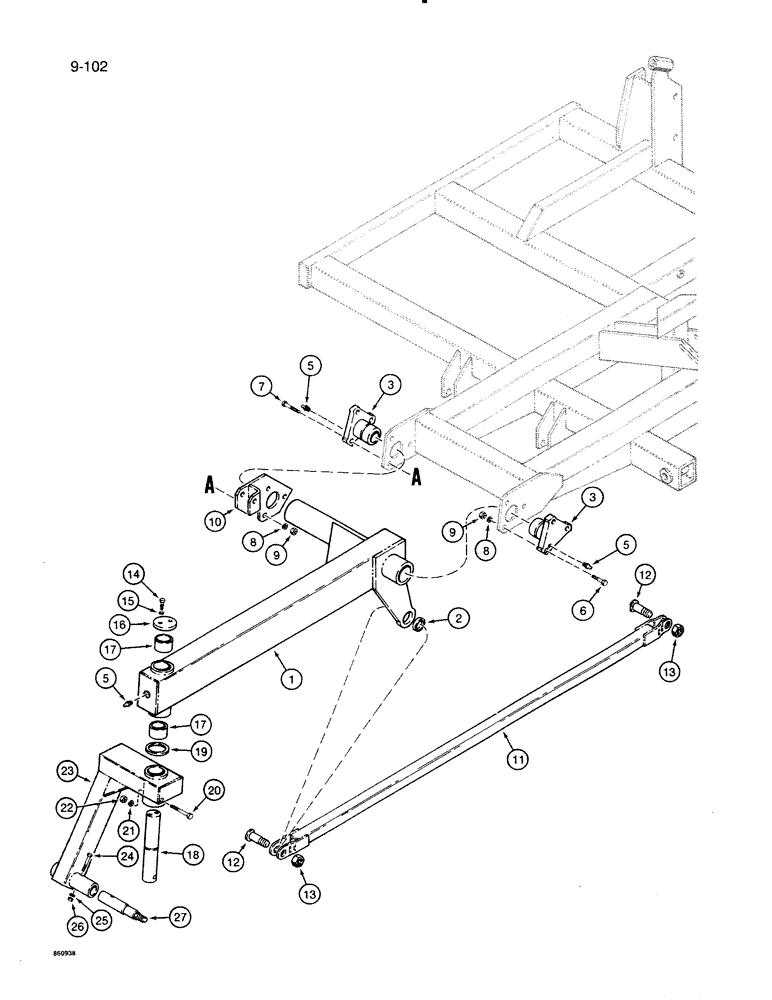

Запчасти Case IH 8500 (9-102) - LIFT ASSIST PARTS, USED W/ FRAME SECTION NUMBER 1, UNITS W/O SPRING CENTERED CASTER, 45 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337311C1

ARM

- lift assist, section number 1

1шт.

2

1337423C1

BUSHING

- pivot, arm to lift link

1шт.

3

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

3шт.

6

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2"

3шт.

7

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

- hex head, 5/8" - 11 NC x 2-1/2"

3шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

6шт.

10

1337313C1

CLEVIS

BRACKET - mounting, adjusting screw, left-hand

1шт.

see page 9-171 for the adjusting screw

1шт.

11

1337305C1

LINK

- gauge wheel arm to lift arm

1шт.

12

1337377C1

BOLT

-, Serial Range: link-arm

2шт.

13

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, link bolt

2шт.

14

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4"

2шт.

15

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

89035C1

CAP

- retainer

1шт.

17

1337422C1

BUSHING

- caster wheel shaft

2шт.

18

1337315C1

SHAFT

- lift arm caster

1шт.

19

1337385C1

SPACER

WASHER - thrust

1шт.

20

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC X 4"

1шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.

23

1337316C1

ARM

CASTER - lift arm

1шт.

24

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

1шт.

25

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

26

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

27

REF

INSTRUCTION

SPINDLE - hub, 6 bolt, see page 9-7 for hub and bearings

1шт.
