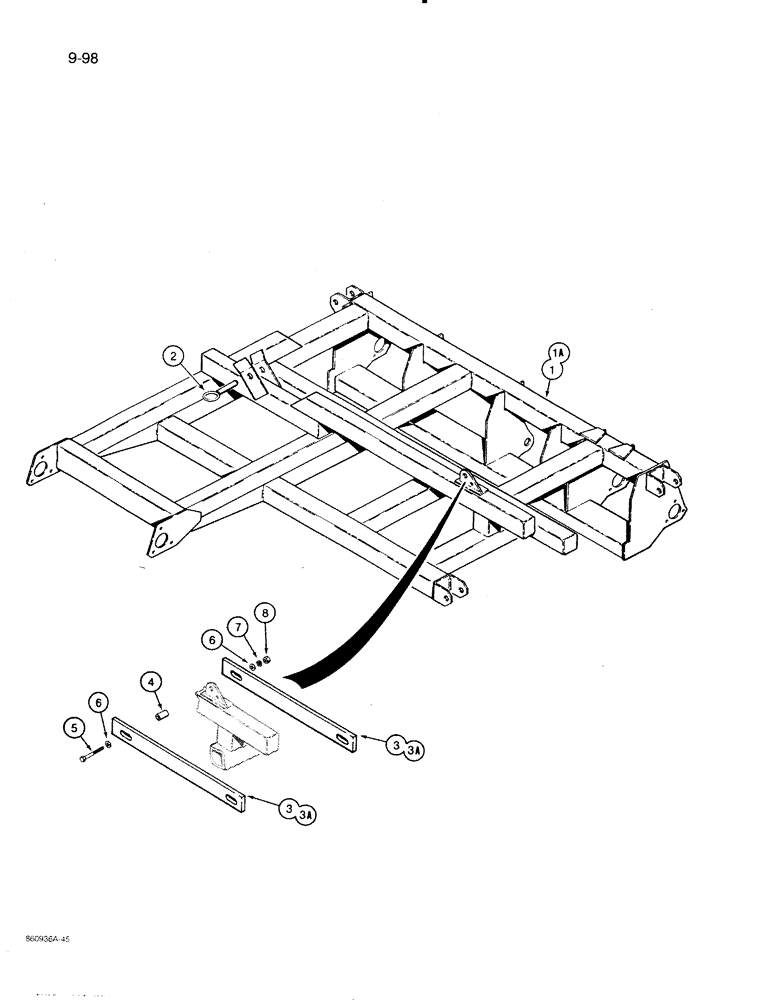

Запчасти Case IH 8500 (9-098) - DRILL FRAME SECTION NUMBER TWO, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

89003C1

FRAME

- drill, section number 2, used with 7 inch row spacing

1шт.

1a

89013C1

FRAME

- drill, section number 2, used with

1шт.

10 inch row spacing, not shown

1шт.

2

1131990R1

PIN

- lock, transport

1шт.

3

1337431C1

BAR

- limiter, used with 7 inch row spacing frame

2шт.

3a

1337379C1

BAR

- limiter, used with 10 inch

1шт.

row spacing frame, not shown

2шт.

4

1337430C1

SPACER

- bar

2шт.

5

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

- hex head, 7/8" - 9 NC x 3-1/2"

2шт.

6

27820R1

WASHER

- flat, 7/8"

4шт.

7

NLS

NO LONGER SERVICED

7/8"

2шт.

8

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.
