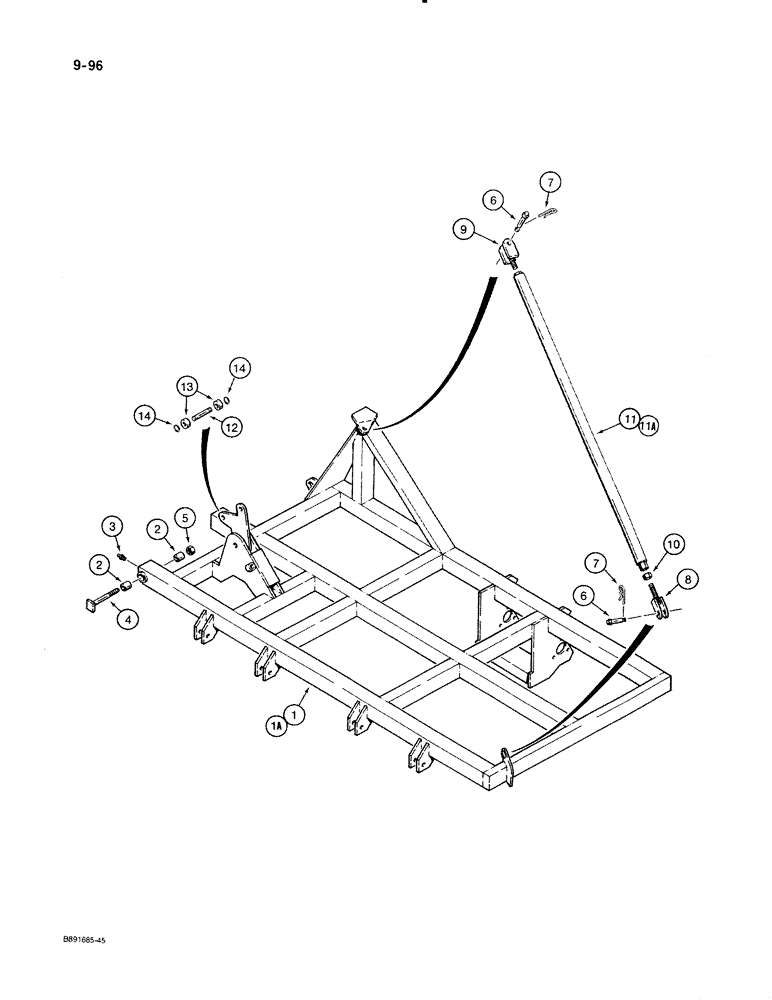

Запчасти Case IH 8500 (9-096) - DRILL FRAME SECTION NUMBER FOUR, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1980782C1

FRAME

- drill, section number 4, used with 7 inch row spacing

1шт.

1a

1980781C1

FRAME

- drill, section number 4

1шт.

used with 10 inch row spacing, not shown

1шт.

2

1337423C1

BUSHING

- frame pivot

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

4

1337438C1

BOLT

PIN - special, frame pivot

1шт.

5

26566R1

LOCK NUT

- hex, self-locking, 1" - 8 NC

1шт.

6

1344588C1

PIN

- clevis, special, with spring clip

2шт.

7

520175R1

CLIP

PIN - hair type

2шт.

8

1344591C1

CLEVIS

- lower adjustment, right-hand thread

1шт.

9

1344592C1

CLEVIS

- upper adjustment, left-hand thread

1шт.

10

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex jam, 1-1/4 inch NC

1шт.

11

1344594C1

TUBE

STRUT - adjustment, used with 7 inch row spacing frame

1шт.

11a

1344596C1

TUBE

STRUT - adjustment, used with 10 inch row spacing frame, not shown

1шт.

12

1344589C1

SHAFT

PIN - flex link roller

1шт.

13

1344590C1

ROLLER

- flex link

2шт.

14

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.
