Запчасти Case IH 8500 (9-092) - DRILL FRAME SECTION NUMBER FOUR, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

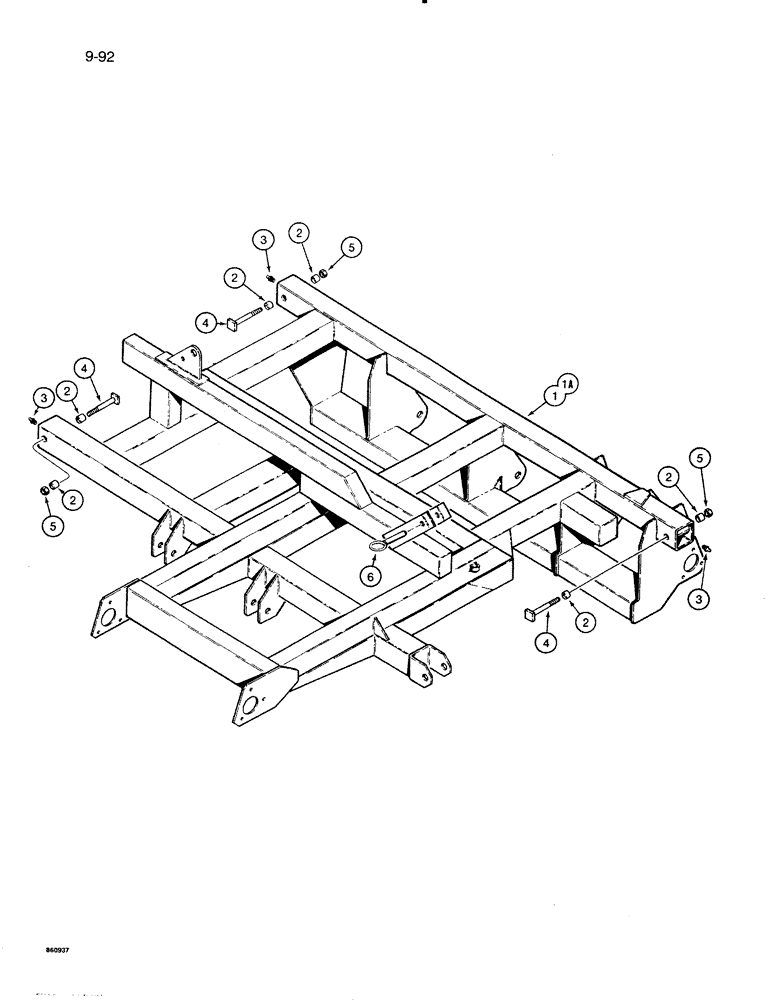

Схема запчастей Case IH 8500 - (9-092) - DRILL FRAME SECTION NUMBER FOUR, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
4
2
2
5
2
2
4
3
5
1
1a
2
5
3
6
3
2
4

Артикул

Название

Примечание

Количество

1

89004C1

FRAME

- drill, section number 4, used with 7 inch row spacing

1шт.

1a

89014C1

FRAME

- drill, section number 4, used with

1шт.

10 and 12 inch row spacing, not shown

1шт.

2

1337423C1

BUSHING

- frame pivot

6шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

3шт.

4

1337438C1

BOLT

PIN - special, frame pivot

3шт.

5

26566R1

LOCK NUT

- hex, self-locking, 1" - 8 NC

3шт.

6

1131990R1

PIN

- lock, transport

1шт.
