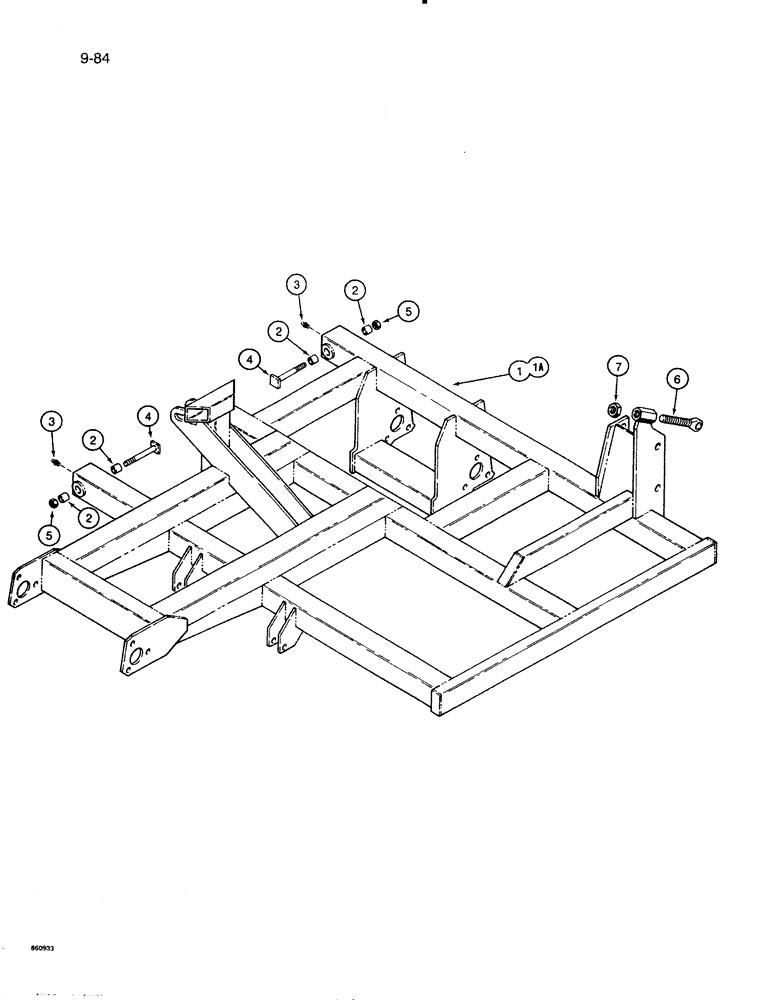

Запчасти Case IH 8500 (9-084) - DRILL FRAME SECTION NUMBER SIX, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

89006C1

FRAME

- drill, section number 6, used with 7 inch row spacing

1шт.

1a

89016C1

FRAME

- drill, section number 6, used with

1шт.

10 and 12 inch row spacing, not shown

1шт.

2

1337423C1

BUSHING

- frame pivot

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

4

1337438C1

BOLT

PIN - special, frame pivot

2шт.

5

26566R1

LOCK NUT

- hex, self-locking, 1" - 8 NC

2шт.

6

89055C1

BOLT

EYEBOLT - cylinder mounting

1шт.

7

272140

BOLT,Jam, 1 1/4"-7, G5

- hex jam, 1-1/4" - 7 NC

1шт.
