Запчасти Case IH 8500 (9-080) - FERTILIZER DRIVE PARTS, JACKSHAFT TO FERTILIZER DRIVE SHAFT (09) - CHASSIS/ATTACHMENTS

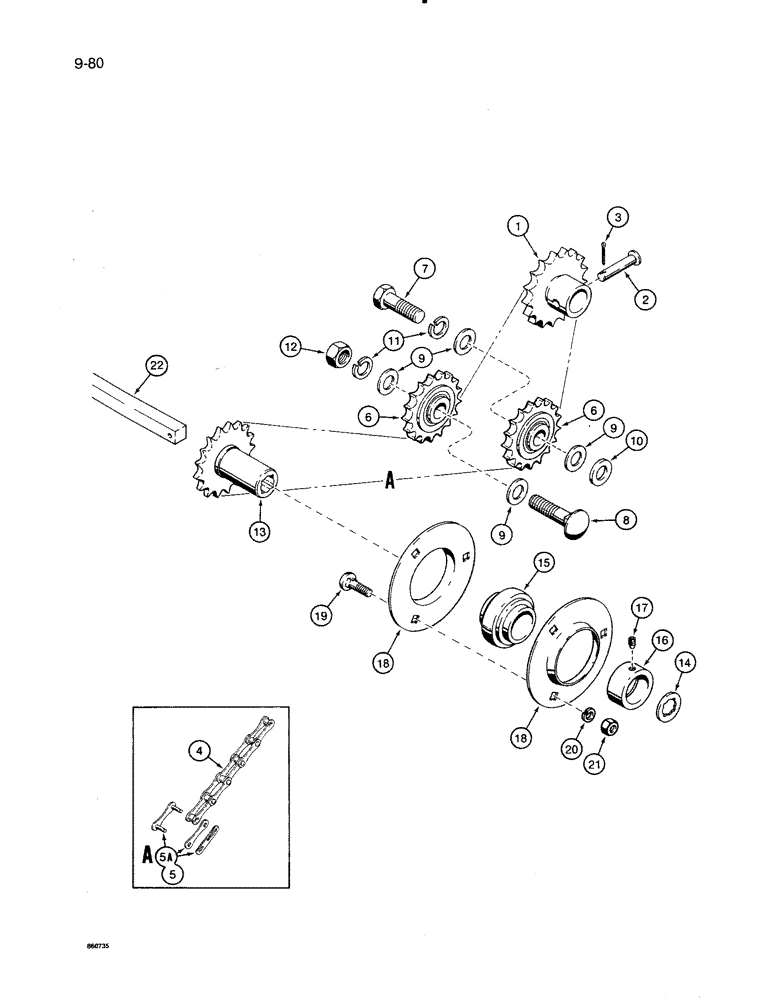

Схема запчастей Case IH 8500 - (9-080) - FERTILIZER DRIVE PARTS, JACKSHAFT TO FERTILIZER DRIVE SHAFT (09) - CHASSIS/ATTACHMENTS
6
18
2
6
13
9
19
5a
9
8
18
4
15
22
12
9
21
11
5
10
3
14
1
17
16
20
7

Артикул

Название

Примечание

Количество

1

88882C1

SPROCKET ASSY.

SPROCKET - fertilizer drive, 18 tooth

1шт.

2

22634R1

PIN,3/8" x 1 3/4"

- retaining, sprocket to jackshaft

1шт.

3

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

REF

INSTRUCTION

CHAIN - drive, fertilizer shaft, 52 links

1шт.

cut from 569088R91 roll

1шт.

5

457113R91

CHAIN LINK

LINK - connecting, master

1шт.

5a

457114R91

CHAIN LINK

LINK - offset, not shown

2шт.

6

841335C1

SPROCKET ASSY.

SPROCKET - chain, idler and

1шт.

tightener, 17 tooth

2шт.

7

NLS

NO LONGER SERVICED

BOLT - hex head, 5/8" - 11 NC x 1-3/4"

1шт.

8

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage head, 5/8" - 11 NC x 2"

1шт.

9

21782R1

WASHER

- flat, 5/8" ID x 0.054" (1.37 mm) thick

1шт.

10

464623R1

WASHER

- flat, 5/8" ID x 0.105" (2.67 mm) thick

1шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.

13

88876C1

SPROCKET ASSY.

SPROCKET - driven, fertilizer

1шт.

shaft, 19 tooth

1шт.

14

21867R1

SQ HOLE WASHER,19/32" x 1" x .060", Sq Hole

- special, square head

1шт.

15

88917C91

BALL BEARING,62 mm OD

- fertilizer drive shaft

1шт.

16

557995R11

COLLAR

- bearing lock

1шт.

17

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW - set, hex socket head, 5/16" - 18 NC x 5/16"

1шт.

18

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing

2шт.

19

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8" - 16 NC x 1"

3шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

120377

NUT,3/8" - 16, Gr 5

3шт.

22

842934C1

BAR

SHAFT - drive, fertilizer feed, see pages 9-53

1шт.

through 9-59 for related parts

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, 120 links

1шт.
