(9-078) - FERTILIZER DRIVE SLIP CLUTCH

Запчасти Case IH 8500 (9-078) - FERTILIZER DRIVE SLIP CLUTCH (09) - CHASSIS/ATTACHMENTS

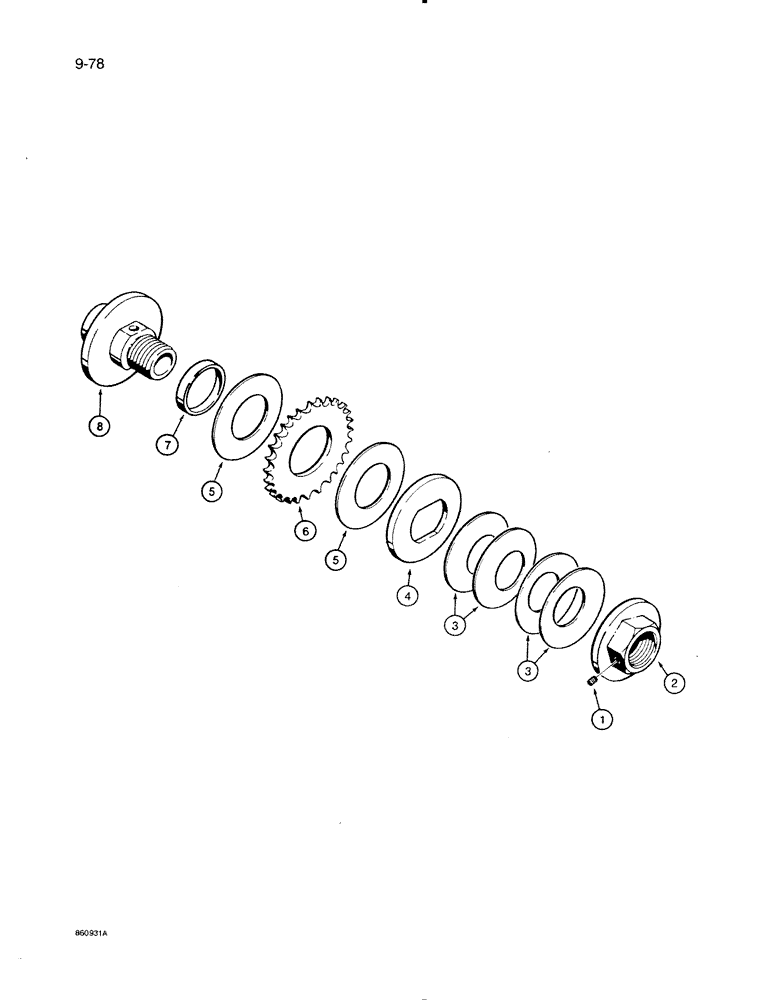

Схема запчастей Case IH 8500 - (9-078) - FERTILIZER DRIVE SLIP CLUTCH (09) - CHASSIS/ATTACHMENTS
2
5
7
3
4
3
1
6
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

2

89159C1

NUT ASSY.

PLATE - retainer, clutch adjustment

1шт.

3

89158C1

BELLEVILLE WASHER

- spring, Belleville type

4шт.

4

89157C1

LARGE PLATE

PLATE - drive, clutch

1шт.

5

89156C1

LARGE PLATE

DISC - friction, clutch

2шт.

6

89154C1

SPROCKET ASSY.

SPROCKET - drive, clutch, 28 tooth

1шт.

7

89155C1

BUSHING

- drive sprocket

1шт.

8

89151C1

HUB

- slip clutch, fertilizer drive

1шт.
