Запчасти Case IH 8500 (9-076) - FERTILIZER DRIVE PARTS, MAIN DRIVE TO FERTILIZER JACKSHAFT (09) - CHASSIS/ATTACHMENTS

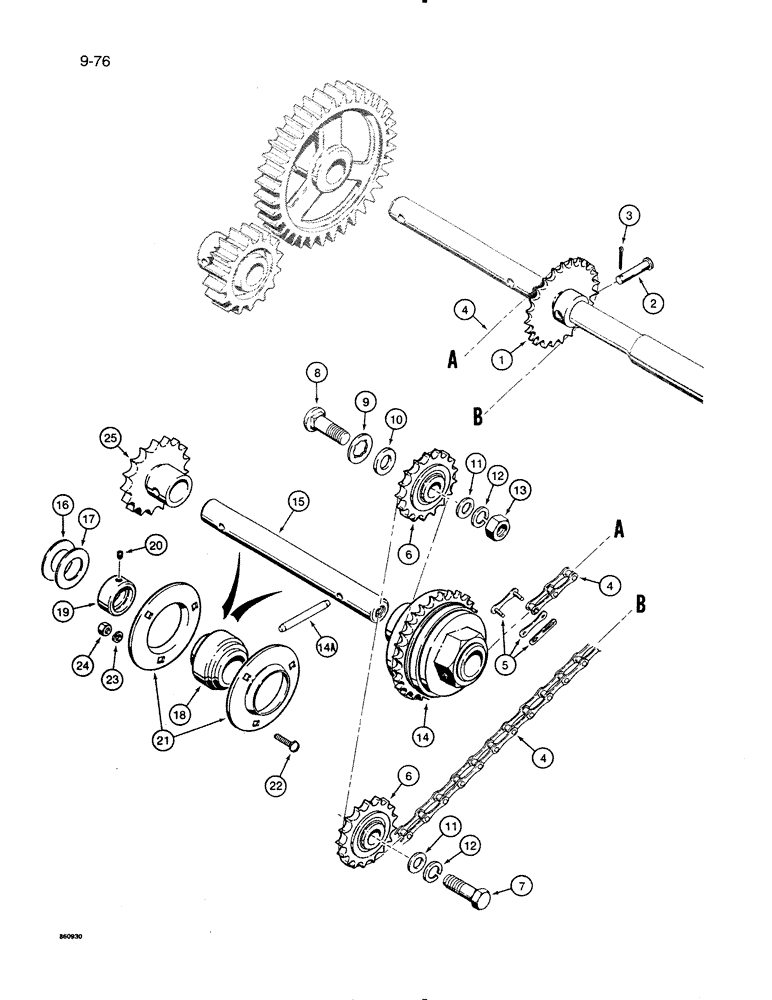

Схема запчастей Case IH 8500 - (9-076) - FERTILIZER DRIVE PARTS, MAIN DRIVE TO FERTILIZER JACKSHAFT (09) - CHASSIS/ATTACHMENTS
21
11
13
12
25
1
16
6
23
20
6
14
15
2
9
5
3
22
14a
19
4
4
11
12
17
24
4
7
18
10
5

Артикул

Название

Примечание

Количество

1

89161C1

SPROCKET ASSY.

SPROCKET - drive, jackshaft, 22 tooth

1шт.

2

22634R1

PIN,3/8" x 1 3/4"

- sprocket to main drive shaft

1шт.

3

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

REF

INSTRUCTION

CHAIN - drive, jackshaft, 57 links

1шт.

cut from 569088R91 bulk roll

1шт.

5

457113R91

CHAIN LINK

LINK - master, chain

1шт.

6

841335C1

SPROCKET ASSY.

SPROCKET - idler and chain tightener

2шт.

7

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT - hex head, 5/8" - 11 NC x 1-3/4"

1шт.

8

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage head, 5/8" - 11 NC x 2"

1шт.

9

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- special, square shoulder

1шт.

10

21782R1

WASHER

- flat, 5/8" ID x 0.054" (1.37 mm) thick

1шт.

11

464623R1

WASHER

- flat, 5/8" ID x 0.105" (2.67 mm) thick

1шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.

14

REF

INSTRUCTION

SLIP CLUTCH - fertilizer drive

1шт.

see page 9-79 for components

1шт.

14a

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, , retainer, special 5/16" x 1 5/8", Slotted

2шт.

15

89160C1

SHAFT

JACKSHAFT - fertilizer drive

1шт.

16

591715R1

WASHER

- flat, 1" ID x 0.054" (1.37 mm) thick

1шт.

17

20704R1

WASHER

- flat, 1" ID x 0.105" (2.67 mm) thick

1шт.

18

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - support, jackshaft

2шт.

19

455102R21

COLLAR

- bearing lock

2шт.

20

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

1шт.

21

462360R1

FLANGED BEARING

- bearing

4шт.

22

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 1"

6шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

24

120376

NUT,5/16"-18, G5

6шт.

25

88882C1

SPROCKET ASSY.

SPROCKET -drive, fertilizer shaft, 18 tooth

1шт.

see page 9-81 for additional parts

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, 120 links

1шт.
