Запчасти Case IH 8500 (9-074) - GRAIN DRIVE PARTS (09) - CHASSIS/ATTACHMENTS

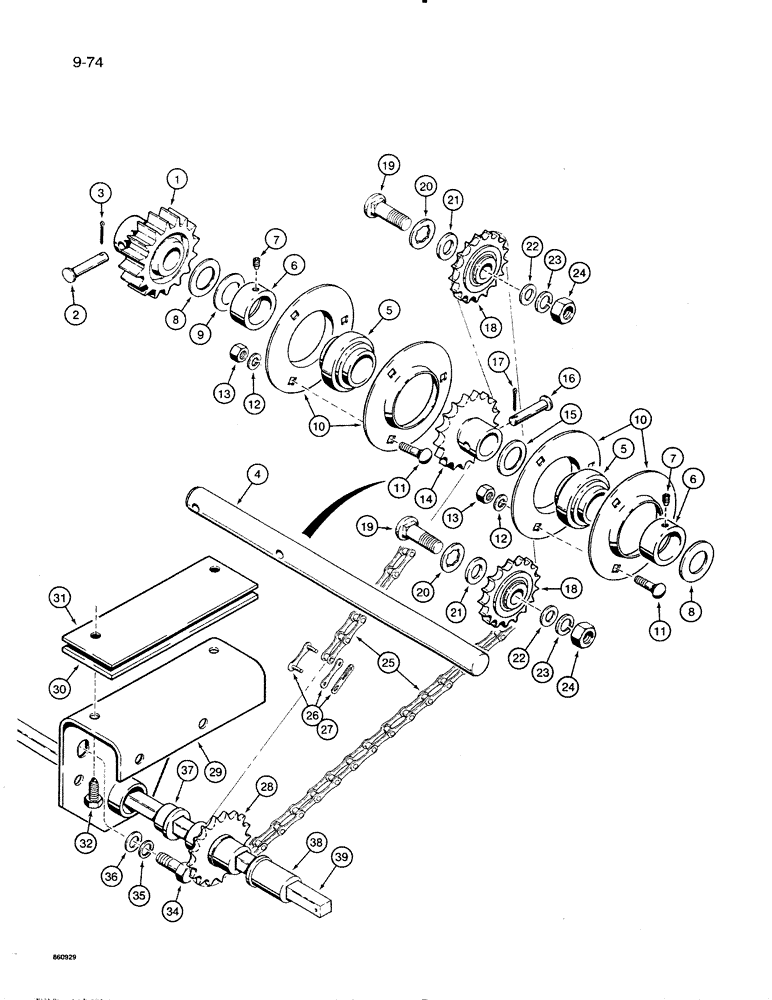

Схема запчастей Case IH 8500 - (9-074) - GRAIN DRIVE PARTS (09) - CHASSIS/ATTACHMENTS
7
9
25
31
17
21
22
6
27
19
14
29
24
23
18
10
28
1
20
35
23
30
24
7
8
13
38
36
11
4
21
22
12
16
8
15
10
11
19
32
34
3
2
20
18
37
12
26
13
6
5
39
5

Артикул

Название

Примечание

Количество

1

842203C1

GEAR

- driven, grain shaft, 16 tooth

1шт.

2

379990R1

HEADED PIN

PIN - gear to grain shaft

1шт.

3

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

841333C1

SHAFT

- grain drive

1шт.

5

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - grain drive shaft

2шт.

6

455102R21

COLLAR

- bearing lock

2шт.

7

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

1шт.

8

20704R1

WASHER

- special, bearing lock collar

1шт.

0.105" (2.67 mm) thick

1шт.

9

591715R1

WASHER

- special, bearing lock collar

1шт.

0.054" (1.37 mm) thick

1шт.

10

462360R1

FLANGED BEARING

- bearing collar

4шт.

11

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 1"

6шт.

12

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

120376

NUT,5/16"-18, G5

6шт.

14

841328C1

SPROCKET ASSY.

SPROCKET - grain drive

1шт.

15

591715R1

WASHER

- special, Serial Range: sprocket-bearing,

1шт.

0.054" (1.37 mm) thick

1шт.

16

22634R1

PIN,3/8" x 1 3/4"

- drive sprocket to shaft

1шт.

17

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

841335C1

SPROCKET ASSY.

SPROCKET - idler and tightener

1шт.

grain shaft drive chain

2шт.

19

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage head, 5/8" - 11 NC x 2-1/2"

2шт.

20

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- flat, 5/8", for square shoulder bolt

2шт.

21

464623R1

WASHER

- flat, 5/8" ID x 0.105" (2.67 mm) thick

1шт.

22

21782R1

WASHER

- flat, 5/8" ID x 0.054" (1.37 mm) thick

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

2шт.

25

REF

INSTRUCTION

CHAIN - drive, grain shaft, 51 links, cut from

1шт.

569088R91 bulk roll

1шт.

26

457113R91

CHAIN LINK

LINK - master, chain, if used

1шт.

27

457114R91

CHAIN LINK

LINK - offset, chain, if used

1шт.

28

841342C1

SPROCKET ASSY.

SPROCKET - driven, grain shaft

1шт.

29

841338C1

SUPPORT

- inner, grain shaft

1шт.

30

842033C1

SHIM

- support to hopper, 0.048" (1.20 mm) thick

1шт.

31

842242C1

SHIM

- support to hopper, 0.030" (0.76 mm) thick

1шт.

32

850648C1

BOLT - hex head, self-tapping, 3/8" - 16 NC x 1"

2шт.

34

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

1шт.

35

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

619856R1

WASHER

- flat, 3/8"

1шт.

37

841345C1

BRONZE BUSHING

BUSHING - shaft, inner

1шт.

38

842788C1

BRONZE BUSHING

BUSHING - shaft, outer

1шт.

39

REF

INSTRUCTION

SHAFT - grain cup drive, see reference number 19, pages

1шт.

9-45 through 9-51 for correct shaft

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk roll, 120 links

1шт.
