Запчасти Case IH 8500 (9-072) - MAIN DRIVE, CLUTCH SPROCKET TO GRAIN AND FERTILIZER DRIVES (09) - CHASSIS/ATTACHMENTS

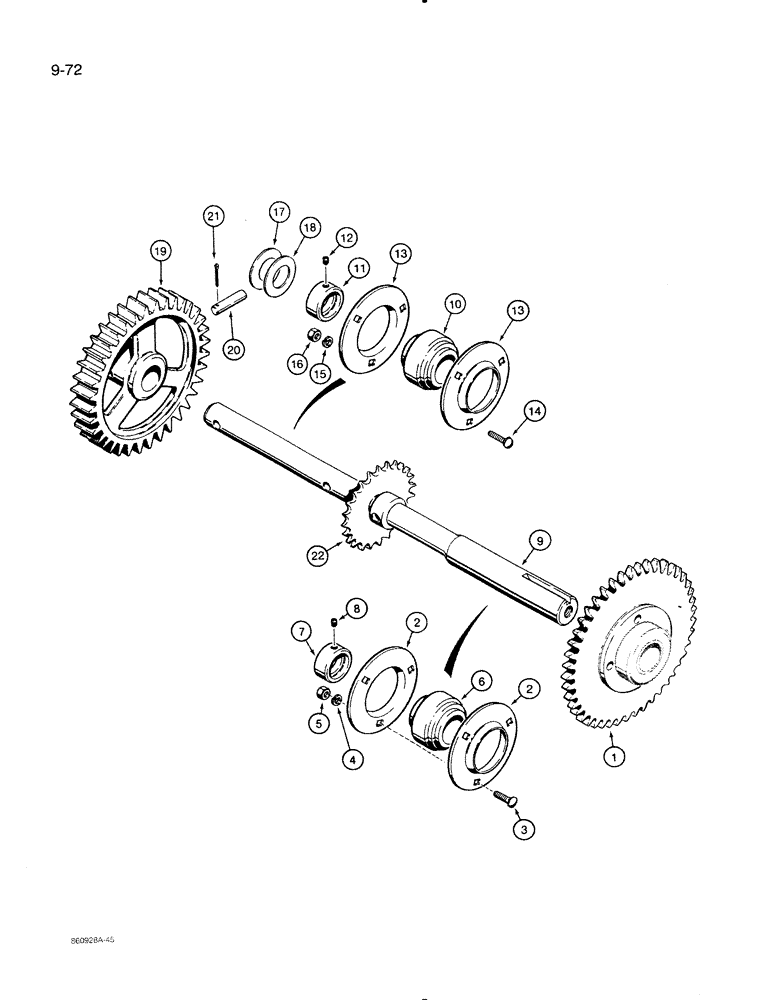

Схема запчастей Case IH 8500 - (9-072) - MAIN DRIVE, CLUTCH SPROCKET TO GRAIN AND FERTILIZER DRIVES (09) - CHASSIS/ATTACHMENTS
16
5
3
21
19
2
11
12
20
13
14
15
18
4
22
1
2
13
6
9
17
10
8
7

Артикул

Название

Примечание

Количество

1

841959C1

SPROCKET ASSY.

SPROCKET - clutch, main drive, 44 tooth

1шт.

see page 9-61 for clutch components

1шт.

2

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing collar, outer

2шт.

3

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8" - 16 NC x 1"

3шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

120377

NUT,3/8" - 16, Gr 5

3шт.

6

88917C91

BALL BEARING,62 mm OD

- outer, clutch shaft

1шт.

7

557995R11

COLLAR

- bearing lock

1шт.

8

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW - set, hex socket head, 5/16" - 18 NC x 5/16"

1шт.

9

841941C1

SHAFT

- clutch and main drive

1шт.

10

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - inner, clutch shaft

1шт.

11

455102R21

COLLAR

- bearing lock

1шт.

12

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

1шт.

13

462360R1

FLANGED BEARING

- bearing collar, inner

2шт.

14

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 1"

3шт.

15

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

120376

NUT,5/16"-18, G5

3шт.

17

20704R1

WASHER

- special, between inner bearing and drive gear

1шт.

0.105" (2.67 mm) thick

1шт.

18

591715R1

WASHER

- special, between inner bearing and drive gear

1шт.

0.054" (1.37 mm) thick

1шт.

19

842204C1

GEAR

- drive, clutch shaft, 34 tooth

1шт.

20

379990R1

HEADED PIN

PIN - gear to clutch shaft

1шт.

21

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

22

89161C1

SPROCKET ASSY.

SPROCKET - drive, fertilizer jackshaft, see page

1шт.

9-77 for related parts

1шт.
