Запчасти Case IH 8500 (9-070) - MAIN DRIVE, JACKSHAFT, BEARINGS AND CHAIN GUARD (09) - CHASSIS/ATTACHMENTS

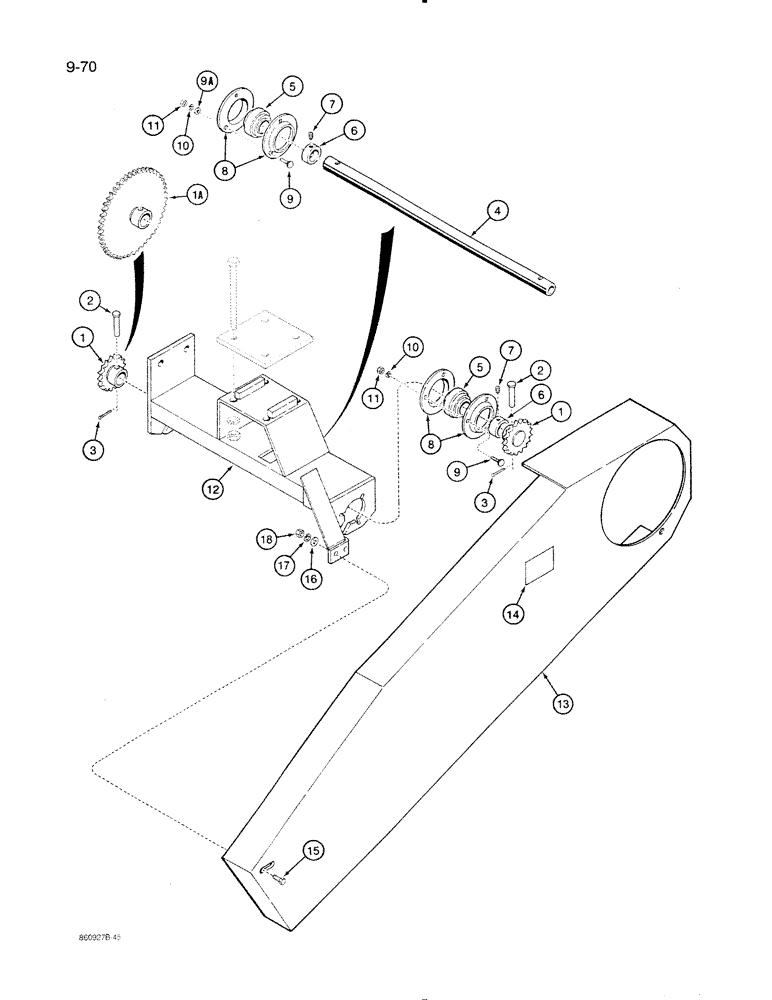

Схема запчастей Case IH 8500 - (9-070) - MAIN DRIVE, JACKSHAFT, BEARINGS AND CHAIN GUARD (09) - CHASSIS/ATTACHMENTS
18
2
4
11
1a
5
9a
17
2
9
7
14
3
3
5
6
10
1
11
15
16
9
8
10
5
1
12
13
7
6

Артикул

Название

Примечание

Количество

1

843014C1

SPROCKET ASSY.

SPROCKET - main drive, 21 tooth

1-2шт.

This sprocket used on input and output side of jackshaft with all grain and combination grain and fertilizer units, also used on input side of jackshaft only with all fertilizer units.

1шт.

1a

95633C1

SPROCKET ASSY.

SPROCKET - main drive, 48 tooth, used on output side of

1шт.

jackshaft with all fertilizer units

1шт.

2

22634R1

PIN,3/8" x 1 3/4"

- sprocket to shaft, 3/8" diameter x 1-3/4" long

2шт.

3

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

4

843041C1

SHAFT

JACKSHAFT - main drive

1шт.

5

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - jackshaft

2шт.

6

455102R21

COLLAR

- bearing lock

2шт.

7

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

2шт.

8

462360R1

FLANGED BEARING

- bearing collar

4шт.

9

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 1"

6шт.

9a

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 5/16"

6шт.

10

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

120376

NUT,5/16"-18, G5

6шт.

12

843035C1

BRACKET

- support, jackshaft, see page 9-69

1шт.

for mounting parts

1шт.

13

843016C1

SHIELD

GUARD - clutch drive chain

1шт.

14

96182C1

PRODUCT GRAPHIC

DECAL - "Drives Identification", item 4, page 9-237

1шт.

15

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4"

4шт.

16

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 5/16"

4шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

120376

NUT,5/16"-18, G5

4шт.

Выбрано товаров: 23
