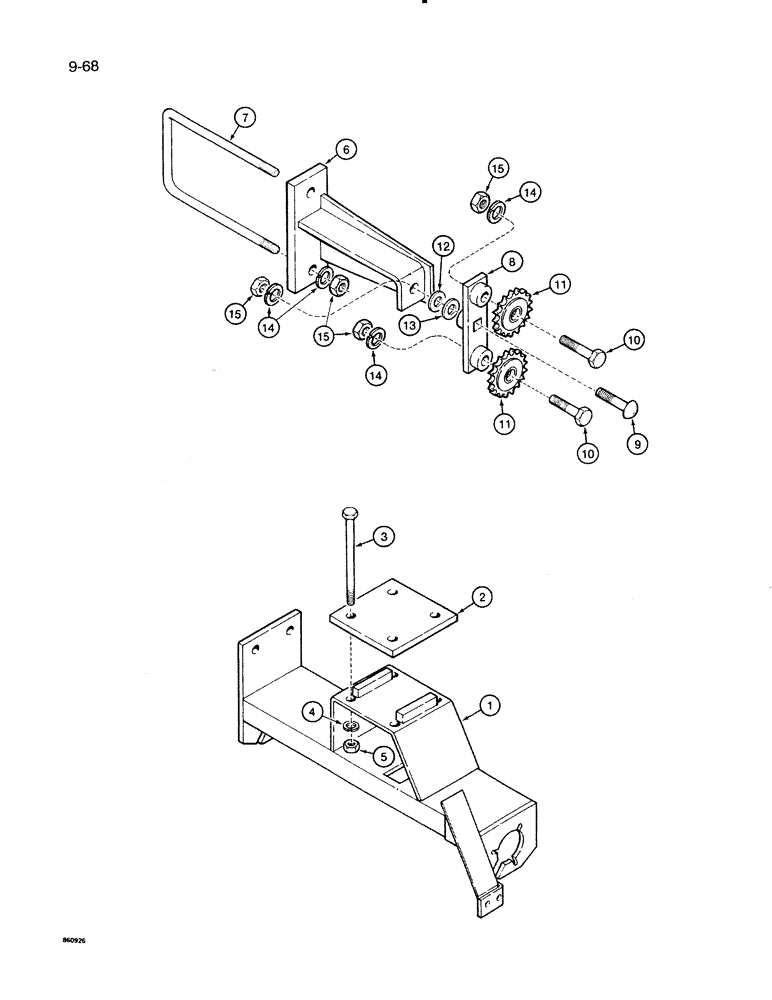

Запчасти Case IH 8500 (9-068) - MAIN DRIVE, JACKSHAFT SUPPORT AND CHAIN IDLER BRACKET (09) - CHASSIS/ATTACHMENTS

1

843035C1

BRACKET

- support, jackshaft, if used

1шт.

Not required on all machines since jackshaft support bracket, Ref. 1 and chain idler bracket Ref. 6 may be welded to and included with P/N 842999C3 hopper frame.

1шт.

2

843042C1

PLATE

- mounting, bracket to frame, if used

1шт.

Not required on all machines since jackshaft support bracket, Ref. 1 and chain idler bracket Ref. 6 may be welded to and included with P/N 842999C3 hopper frame.

1шт.

3

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

- hex head, 1/2" - 13 NC x 6-1/2", if used

4шт.

Not required on all machines since jackshaft support bracket, Ref. 1 and chain idler bracket Ref. 6 may be welded to and included with P/N 842999C3 hopper frame.

1шт.

4

120384

WASHER,1/2"

LOCK, , If used 1/2"

4шт.

Not required on all machines since jackshaft support bracket, Ref. 1 and chain idler bracket Ref. 6 may be welded to and included with P/N 842999C3 hopper frame.

1шт.

5

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , If used 1/2"-13, G5

4шт.

Not required on all machines since jackshaft support bracket, Ref. 1 and chain idler bracket Ref. 6 may be welded to and included with P/N 842999C3 hopper frame.

1шт.

6

89165C1

BRACKET

- mounting, chain idler, if used

1шт.

Not required on all machines since jackshaft support bracket, Ref. 1 and chain idler bracket Ref. 6 may be welded to and included with P/N 842999C3 hopper frame.

1шт.

7

842977C1

BOLT

U BOLT - bracket to frame, if used

1шт.

Not required on all machines since jackshaft support bracket, Ref. 1 and chain idler bracket Ref. 6 may be welded to and included with P/N 842999C3 hopper frame.

1шт.

8

89169C1

BRACKET

ADJUSTER - idler sprockets, chain

1шт.

9

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage head, 5/8" - 11 NC x 2-1/2"

1шт.

10

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex head, 5/8" - 11 NC x 2-3/4"

2шт.

11

841335C1

SPROCKET ASSY.

SPROCKET - idler and tightener, clutch drive chain

2шт.

12

464623R1

WASHER

- flat, 5/8" ID x 0.105" (2.67 mm) thick

1шт.

13

21782R1

WASHER

- flat, 5/8" ID x 0.054" (1.37 mm) thick

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

5шт.
