Запчасти Case IH 8500 (9-066) - MAIN DRIVE, DRIVE WHEEL SPROCKET AND CHAINS (09) - CHASSIS/ATTACHMENTS

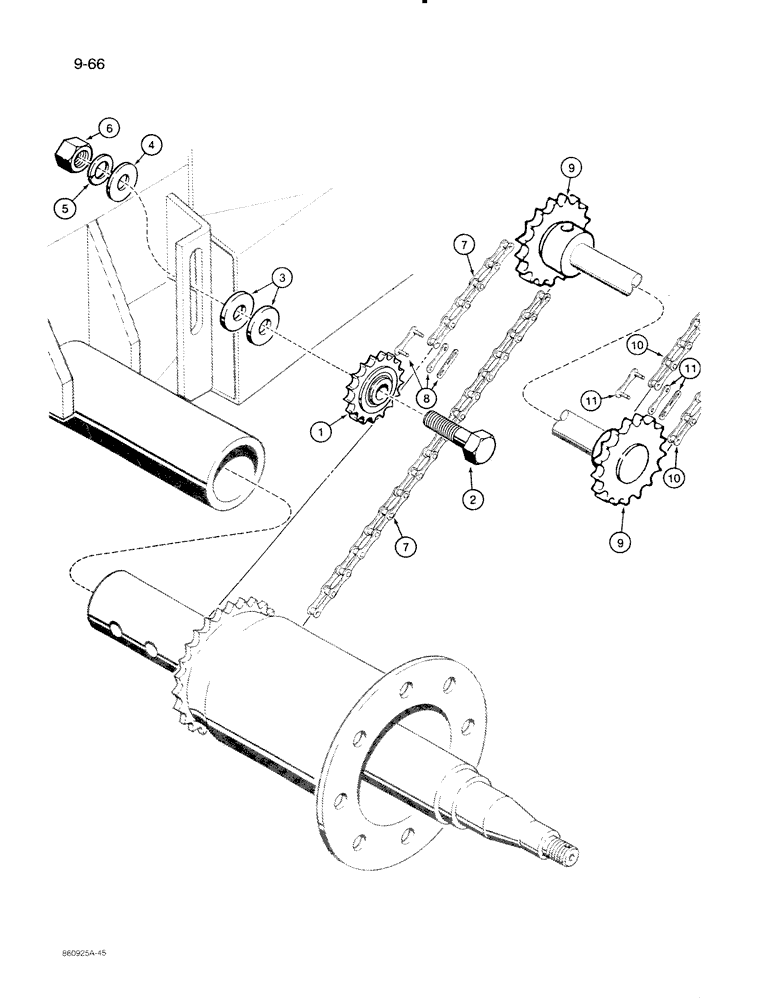

Схема запчастей Case IH 8500 - (9-066) - MAIN DRIVE, DRIVE WHEEL SPROCKET AND CHAINS (09) - CHASSIS/ATTACHMENTS
10
9
1
10
7
9
5
4
11
11
2
3
7
6
8

Артикул

Название

Примечание

Количество

1

841335C1

SPROCKET ASSY.

SPROCKET - idler and tightener, main drive chain

1шт.

2

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - hex head, 5/8" - 11 NC x 2"

1шт.

3

464623R1

WASHER

- flat, 5/8" ID x 0.105" (2.67 mm) thick

1шт.

4

21782R1

WASHER

- flat, 5/8" ID x 0.054" (1.37 mm) thick

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.

7

REF

INSTRUCTION

CHAIN - main drive, 76 links, cut from 569088R91 bulk roll

1шт.

8

457113R91

CHAIN LINK

LINK - master, chain

1шт.

9

843014C1

SPROCKET ASSY.

SPROCKET - main drive, 21 tooth, see page 9-71 for

1шт.

jackshaft, bearings and 48 tooth sprocket, item 1A

2шт.

10

REF

INSTRUCTION

CHAIN - drive, to clutch sprocket, 108 links, cut from

1шт.

569088R91 bulk roll

1шт.

11

457113R91

CHAIN LINK

LINK - master, chain

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk roll, 120 links

1шт.
