Запчасти Case IH 8500 (9-064) - MAIN DRIVE CLUTCH SWITCH CONTROLS, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

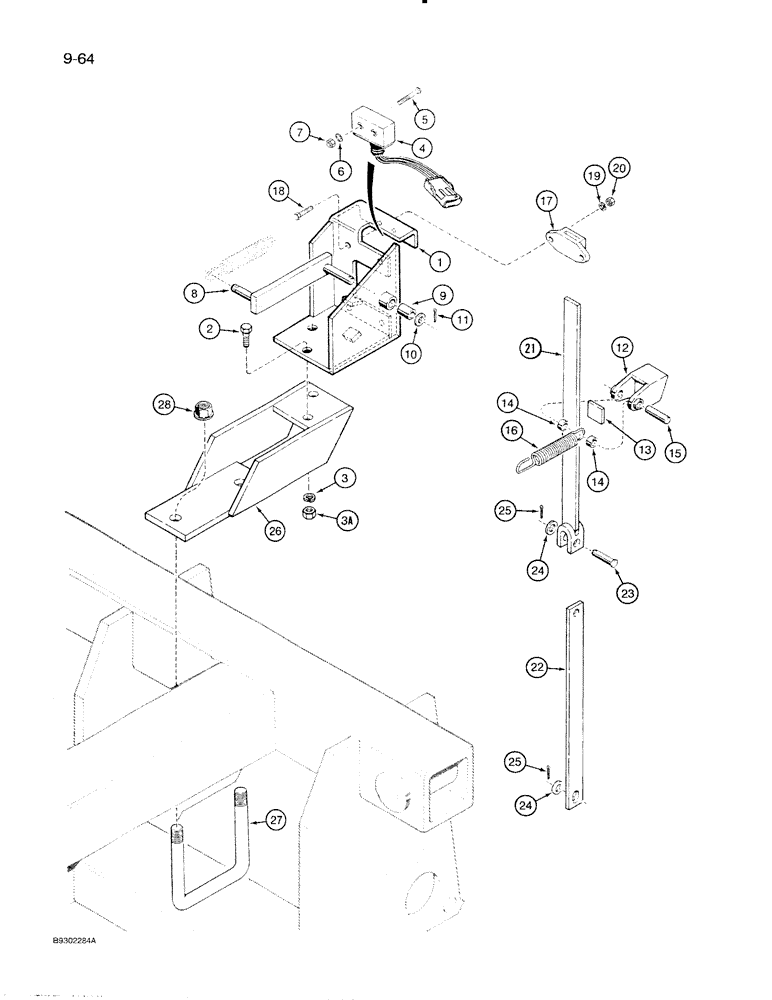

Схема запчастей Case IH 8500 - (9-064) - MAIN DRIVE CLUTCH SWITCH CONTROLS, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
16
2
6
25
3a
26
17
18
22
27
14
23
10
14
15
11
1
8
12
3
4
25
19
24
21
7
20
9
24
5
13
28

Артикул

Название

Примечание

Количество

1

842486C1

SUPPORT ASSY.

BRACKET - mounting, clutch switch

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

3a

425-106

NUT,3/8"-16, Cl 5

2шт.

4

84053C1

SWITCH

AND WIRE - micro, see pages 4-13 for tool bar harness connections

1шт.

5

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

- machine, pan head, No. 6 - 32 NC x 1-1/4 inch

2шт.

6

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER - lock, external tooth, No. 6

2шт.

7

134530

NUT,Hex, #6 - 32

2шт.

8

842163C1

LEVER

- plunger

1шт.

9

1334172C1

BUSHING

- lever, in mounting bracket

1шт.

10

20803R1

WASHER

- flat, 3/8 inch

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

12

842483C1

PLUNGER

- limit switch

1шт.

13

842266C1

PAD

- wear, plunger

1шт.

14

M44913

SPACER,1/8" Pipe x 3/8"

- plunger pin

2шт.

15

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

16

842482C1

SPRING

- plunger lever

1шт.

17

842484C1

GUIDE

- slide bar

2шт.

18

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

21

103398A1

BAR

- slide, plunger

1шт.

22

842502C1

BAR

- clutch switch, at gauge wheel arm

1шт.

23

28234R1

HEADED PIN,3/8" x 1 1/2"

PIN - clevis, 3/8 inch diameter x 1-1/2 inch long

1шт.

24

20803R1

WASHER

- flat, 3/8 inch

2шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

26

103394A1

BRACKET

- mounting, control to drill frame

1шт.

27

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, Serial Range: bracket-frame

1шт.

28

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.
