Запчасти Case IH 8500 (4-04) - CART HARNESS, REMOTE MODULE AND SENSORS (04) - ELECTRICAL SYSTEMS

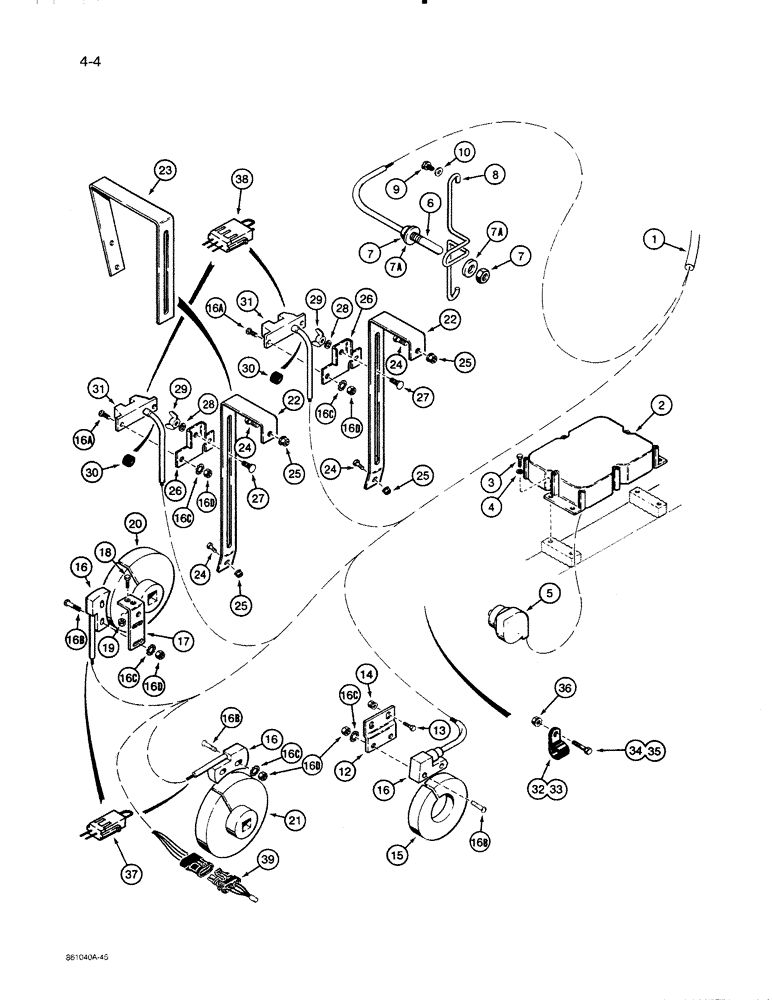

Схема запчастей Case IH 8500 - (4-04) - CART HARNESS, REMOTE MODULE AND SENSORS (04) - ELECTRICAL SYSTEMS
35
32
24
16d
7a
30
9
4
12
31
16
16b
26
16
37
3
24
16d
6
24
20
31
26
24
19
8
38
30
16
25
7
17
22
18
16b
7
29
28
5
15
16d
21
16a
13
22
23
16c
27
16c
1
34
27
39
16c
33
28
25
25
14
2
16a
25
16b
16c
29
7a
16c
36
10
16b

Артикул

Название

Примечание

Количество

1

91783C1

HARNESS

HARNESS - cart, remote module and sensors

1шт.

2

1935104C1

REMAN-ELECT MONITOR

REMAN-MONITOR MODULE - remote, remanufactured

1шт.

2

1935105C1

CORE-MONITOR

RETURN NUMBER - use this part number to return module core for credit when using a remanufactured assembly

1шт.

2

84205C2

CONTROL

MODULE - remote, new

1шт.

3

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

4шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

REF

INSTRUCTION

BRUSH HOLDER AND WIRING HARNESS - electric clutch, see page 9-61 for part numbers

1шт.

6

245193C2

SENSOR

SENSOR - fan speed

1шт.

7

84116C1

NUT

NUT - hex, special, 3/4" - 16 NF, fan sensor mounting

2шт.

7a

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

WASHER - flat, 3/4"

2шт.

8

842844C1

SUPPORT

SUPPORT - fan sensor, 5" fan

1шт.

8

841214C1

SUPPORT

SUPPORT - fan sensor, 3-1/4" fan, not shown

1шт.

9

850679C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

2шт.

10

446363

WASHER,5/16"

WASHER - flat, 5/16"

2шт.

12

91164C1

SUPPORT

SUPPORT - area sensor

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

14

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - hex, flange lock, 1/4" - 20 NC

2шт.

15

1337083C1

KIT

KIT - actuator, land area, includes adapters and mounting hardware

1шт.

16

84229C1

TRANSMITTER

SENSOR - fertilizer and grain shaft speed, and land area

3шт.

16a

86511922

SCREW,Pan, #10 - 24 x 3/4"

MACHINE SCREW - pan head, No. 10 - 32 NC x 3/4"

4шт.

16b

159962

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

MACHINE SCREW - pan head, No. 10 - 32 NC x 1-1/4"

6шт.

16c

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER - lock, external-internal tooth, No. 10

10шт.

16d

120361

NUT,Hex Mach Screw, #10 - 24

NUT - hex, No. 10 - 32 NC

10шт.

17

842840C1

SUPPORT

SUPPORT - fertilizer shaft sensor

1шт.

18

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

BOLT - hex head, 1/4" - 20 NC x 1/2"

2шт.

19

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - hex, flange lock, 1/4" - 20 NC

2шт.

20

1337084C1

KIT

KIT - actuator, grain shaft speed, includes adapter and mounting hardware

1шт.

21

1337082C1

KIT

KIT - actuator, fertilizer shaft speed, includes adapters and mounting hardware

1шт.

22

88865C1

SUPPORT

SUPPORT - bin level sensors, grain and fertilizer

1-2шт.

23

97589C1

SUPPORT

SUPPORT - bin level sensor, used with all fertilizer hopper

1шт.

24

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

2-4шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex, flange lock, 5/16" - 18 NC

2-4шт.

26

842825C1

BRACKET

BRACKET - bin level sensor

1-2шт.

27

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 3/4"

1-2шт.

28

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1-2шт.

29

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" - 18 NC

1-2шт.

30

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

GROMMET - rubber, sensor wires at hopper

1-2шт.

31

84204C1

SENSOR

SENSOR - bin level, grain and fertilizer

1-2шт.

32

148855C2

CLAMP

CLAMP - harness to cart frame, 1" diameter

1шт.

33

1251744C2

CLAMP

CLAMP - harness to cart frame, 3/4" diameter

1шт.

34

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2", clamps to frame weldnuts

1шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT - hex head, 3/8" - 16 NC x 3/4", clamps to frame holes

1шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT - hex, flange lock, 3/8" - 16 NC, use with item 35 bolt only

1шт.

37

1337045C1

PLUG

PLUG - shorting, sensor, 2 wire, if used

1-2шт.

38

1337041C1

PLUG

PLUG - shorting, sensor, 3 wire, if used

1-2шт.

39

92203C1

PLUG

PLUG - termination, to grass sensor harness

1шт.

Выбрано товаров: 46
