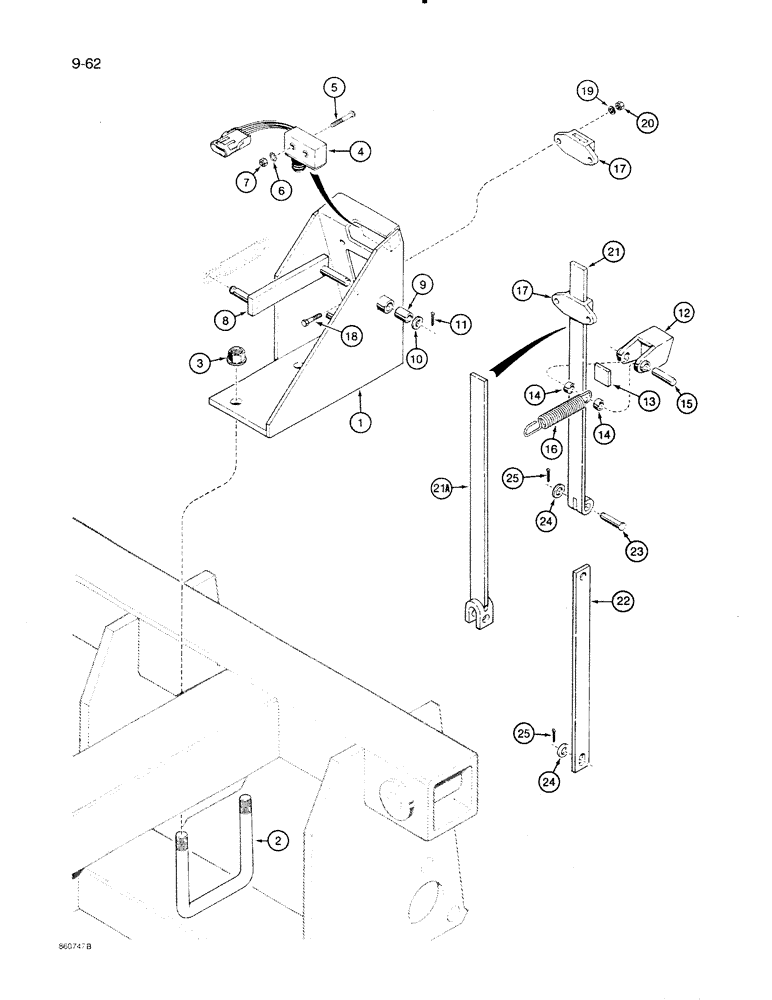

Запчасти Case IH 8500 (9-062) - MAIN DRIVE CLUTCH SWITCH CONTROLS, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

89072C3

SUPPORT

BRACKET - mounting, clutch switch

1шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

-, Serial Range: bracket-frame

1шт.

3

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, flange lock, 3/8" - 16 NC

2шт.

4

84053C1

SWITCH

AND WIRE - micro, see pages 4-7

1шт.

through 4-11 for tool bar harness connections

1шт.

5

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

- machine, pan head, No. 6 - 32 NC x 1-1/4"

2шт.

6

138473

LOCK WASHER,Ext, #6

WASHER - lock, external tooth, No. 6

2шт.

7

134530

NUT,Hex, #6 - 32

2шт.

8

842163C1

LEVER

- plunger

1шт.

9

1334172C1

BUSHING

- lever, in mounting bracket

1шт.

10

20803R1

WASHER

- flat, 3/8"

1шт.

11

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

842483C1

PLUNGER

- limit switch

1шт.

13

842266C1

PAD

- wear, plunger

1шт.

14

M44913

SPACER,1/8" Pipe x 3/8"

- plunger pin

2шт.

15

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

16

842482C1

SPRING

- plunger lever

1шт.

17

842484C1

GUIDE

- slide bar

2шт.

18

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

21

842485C1

SLIDE

BAR - slide, plunger, stainless steel, if used

1шт.

21a

103398A1

BAR

- slide, plunger, welded with zinc plate, if used

1шт.

22

89080C1

BAR

- clutch switch, at gauge wheel arm

1шт.

23

28234R1

HEADED PIN,3/8" x 1 1/2"

PIN - clevis, 3/8" diameter x 1-1/2" long

1шт.

24

20803R1

WASHER

- flat, 3/8"

2шт.

25

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
