Запчасти Case IH 8500 (9-060) - MAIN DRIVE CLUTCH (09) - CHASSIS/ATTACHMENTS

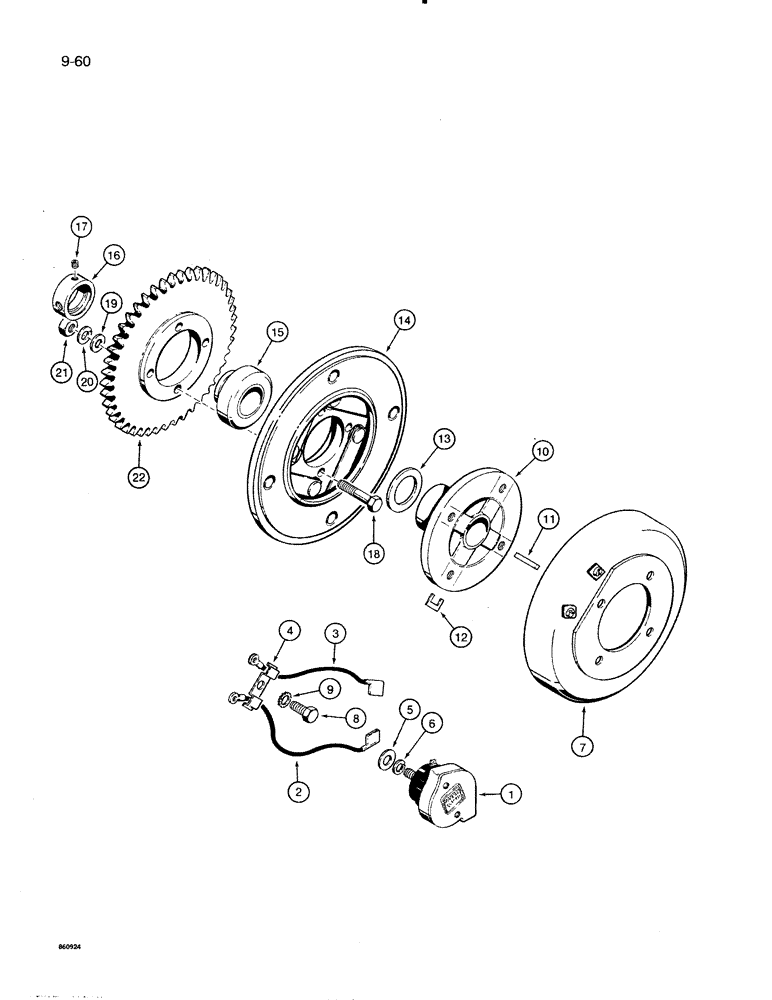

Схема запчастей Case IH 8500 - (9-060) - MAIN DRIVE CLUTCH (09) - CHASSIS/ATTACHMENTS
1
10
3
13
17
18
5
13
16
19
8
6
9
21
4
7
20
22
15
2
11
14

Артикул

Название

Примечание

Количество

1

92381C1

HOLDER

- brush, armature

1шт.

2

1253726C1

ELECTRICAL WIRE

WIRE - brush holder, 6 inch (152 mm) long

1шт.

3

1253728C1

ELECTRICAL WIRE

WIRE - brush holder, 4 inch (102 mm) long

1шт.

4

222680C1

CLIP

CLAMP - wires to clutch hub

1шт.

5

460908R1

WASHER

- flat, 1/2"

1шт.

6

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

179861C93

MAGNET

- clutch

1шт.

8

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

4шт.

9

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

136165C2

HUB

ASSEMBLY - clutch

1шт.

10

NSS

NOT SOLD SEPARAT

HUB - clutch

1шт.

11

128374C2

KEY

- Woodruff, 3/8" x 2-1/8" long

1шт.

12

122162C1

SHIM

- clutch

4шт.

13

22182R1

WASHER

- between clutch hub and bearing

1шт.

14

122157C2

HUB

AND ARMATURE - clutch

1шт.

15

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

- drive clutch

1шт.

16

557995R11

COLLAR

ASSEMBLY - bearing

1шт.

17

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

- hex socket head, 5/16" - 18 NC x 5/16"

1шт.

18

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex head, 3/8" - 16 NC x 2"

4шт.

19

619856R1

WASHER

- flat, 3/8"

4шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

120377

NUT,3/8" - 16, Gr 5

4шт.

22

841959C1

SPROCKET ASSY.

SPROCKET - clutch, main drive, 44 tooth, see page 9-67

1шт.

for cart wheel drive components

1шт.

Выбрано товаров: 24
