Запчасти Case IH 8500 (9-054) - FERTILIZER FEED PARTS, UNITS WITH 10 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

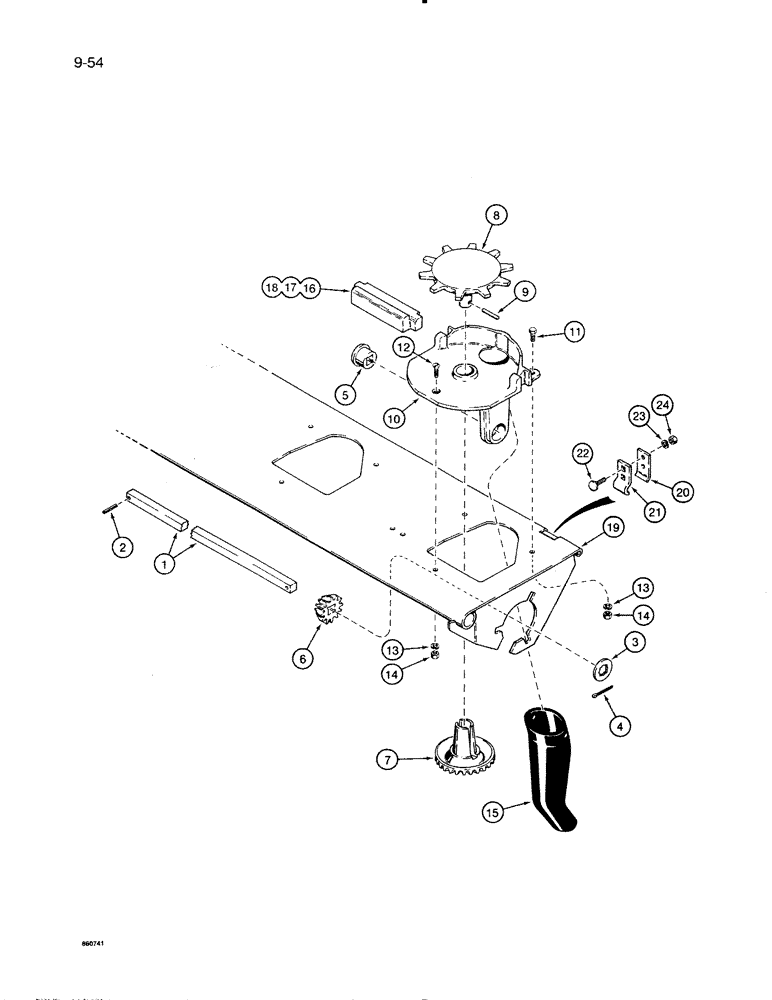

Схема запчастей Case IH 8500 - (9-054) - FERTILIZER FEED PARTS, UNITS WITH 10 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
15
9
1
17
10
13
16
3
8
5
12
23
14
13
11
20
19
18
2
4
6
14
21
7
22
24

Артикул

Название

Примечание

Количество

1

842934C1

BAR

SHAFT - fertilizer feed

1шт.

2

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

3

M76123

WASHER,19/32" x 1 1/4" x .105", Sq Hole

SHIM - drive gear, 0.090" (2.29 mm) thick

1шт.

4

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

603462R1

TRUNNION

BUSHING - feed, Serial Range: shaft-plate

6шт.

6

603463R1

GEAR

- drive, bevel, at shaft

6шт.

7

F282C

GEAR

- driven, bevel, star wheel

6шт.

97881C91

RIM

WHEEL ASSEMBLY - star, fertilizer feed

6шт.

8

NSS

NOT SOLD SEPARAT

WHEEL - star, fertilizer feed

1шт.

9

N62414

PIN,3.96mm OD x 28mm L

- special, star wheel to driven gear

1шт.

10

841651C1

LARGE PLATE

PLATE - support, star wheel

6шт.

11

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex head, 1/4" - 20 NC x 5/8"

12шт.

12

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

6шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

18шт.

14

120375

NUT,Hex, 1/4" - 20, Gr 5

18шт.

15

842254C1

PLASTIC-RUBBER TUBE

TUBE - rubber, fertilizer delivery

6шт.

16

842986C1

SPACER

- support plate, 9.80" (249 mm) long

2шт.

17

843001C1

SPACER

- support plate, 7.95" (202 mm) long

1шт.

18

843007C1

SPACER

- support plate, 6.14" (156 mm) long

2шт.

19

88962C1

BOTTOM

- drop, fertilizer, 6 openings

1шт.

20

841775C1

CLAMP

- hinge, top

4шт.

21

841774C1

CLAMP

- hinge, bottom

4шт.

22

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - carriage head, 1/4" - 20 NC x 1"

8шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

24

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

Выбрано товаров: 25
