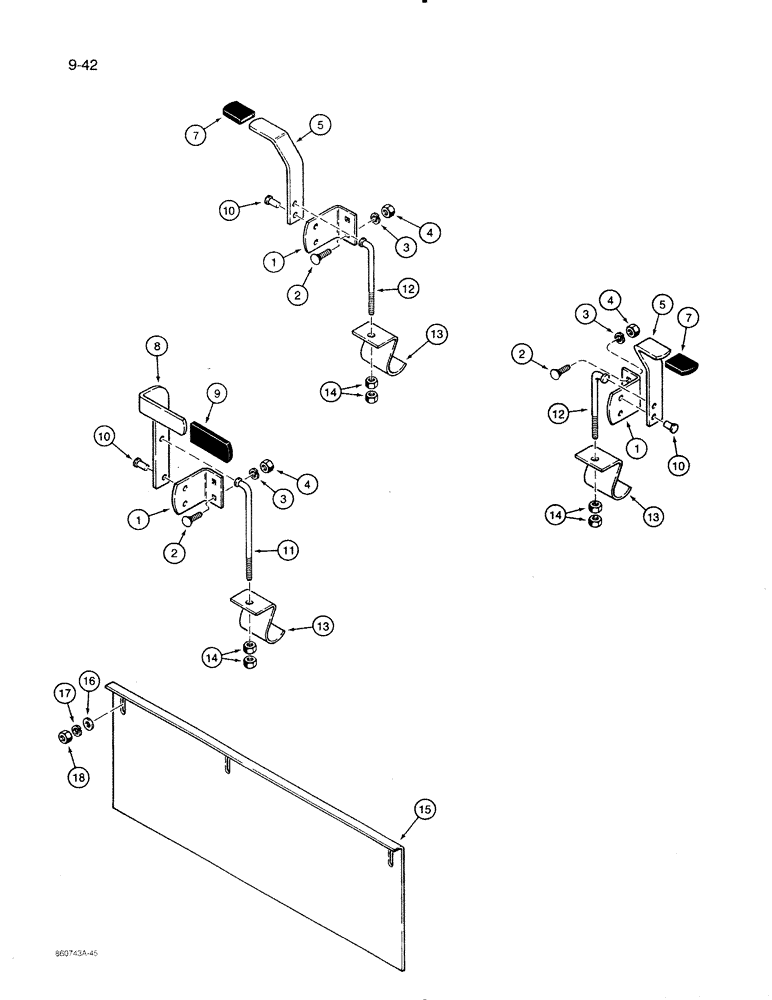

Запчасти Case IH 8500 (9-042) - FERTILIZER DROP BOTTOM LEVERS AND ACCESS PANELS (09) - CHASSIS/ATTACHMENTS

1

841811C1

ANGLE

BRACKET - mounting, Serial Range: lever-hopper

4шт.

2

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16" - 18 NC x 3/4"

8шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

120376

NUT,5/16"-18, G5

8шт.

5

815377C1

LEVER

- drop bottom, short, left-hand and right-hand

2шт.

7

815378C1

GRIP

- rubber, short lever

2шт.

8

603501R1

LEVER

- drop bottom, long, center

2шт.

9

815379C1

GRIP

- rubber, long lever

2шт.

10

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8" diameter x 9/16" long

4шт.

11

841809C1

BOLT

ROD - long, Serial Range: lever-clamp

2шт.

12

841810C1

BOLT

ROD - short, Serial Range: lever-clamp

2шт.

13

603497R1

CATCH

CLAMP - lever, at drop bottom

4шт.

14

120377

NUT,3/8" - 16, Gr 5

8шт.

15

843013C1

DOOR

PANEL - access, fertilizer hopper

3шт.

16

619856R1

WASHER

- flat, 3/8"

9шт.

17

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

18

120377

NUT,3/8" - 16, Gr 5

9шт.
